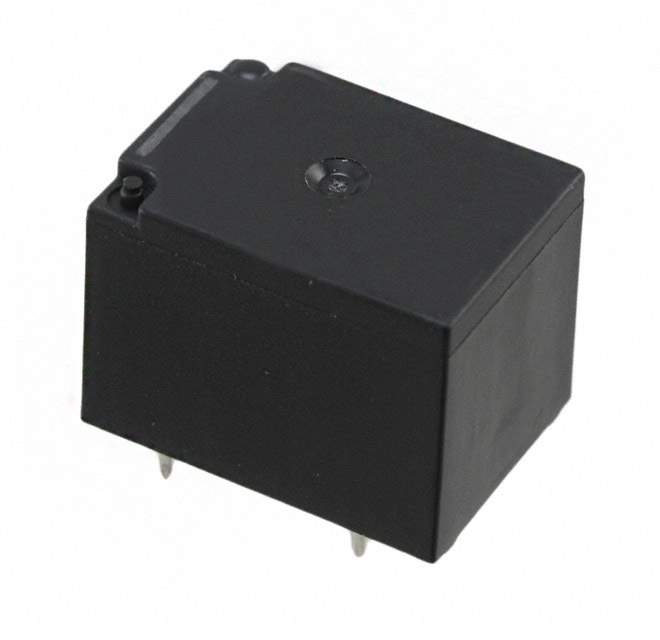

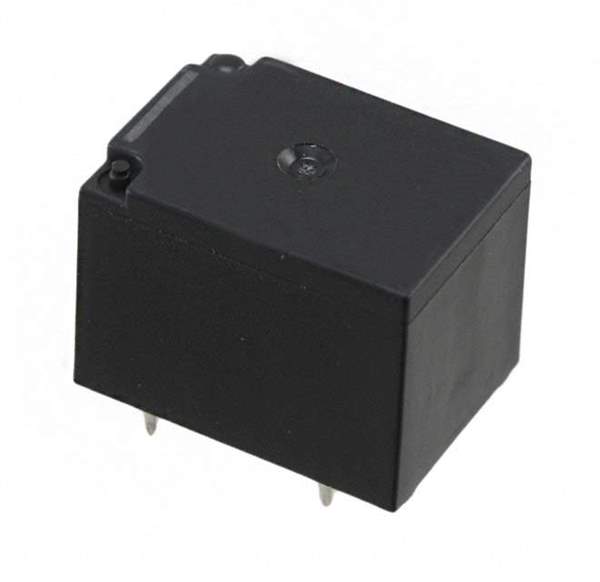

JS1-24V Real Image
Same model may have multiple batches, images only for reference.

JS1-24V

Part No JS1-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description ULTRA-MINIATURE PC BOARD TYPE POWER RELAY | RELAY GEN PURPOSE SPDT 10A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 100VDC - Max
Coil Current 15.0mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 10ms
Release Time 10ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 1.6 kOhms
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Win Source Part Number 1191747-JS1-24V
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management, Automation & Process Control, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian JS1-24V CAD Model

Description

The JS1-24V relay is a general-purpose device with a contact rating of 10A and a switching voltage of 250VAC and 100VDC.

  • GPTDescription: It has a coil voltage of 24VDC and a coil resistance of 1.6 kOhms.
  • GPTDescription: The relay has a contact form of SPDT (1 Form C) and a contact material of silver alloy.
  • GPTDescription: It is designed for through-hole mounting and has a packaging of bulk.
  • GPTDescription: The device has a release time and operate time of 10ms and is considered an obsolete product.
  • GPTDescription: The supply and demand status is limited and the application field is used in industrial, power management, automation & process control, and consumer electronics.
