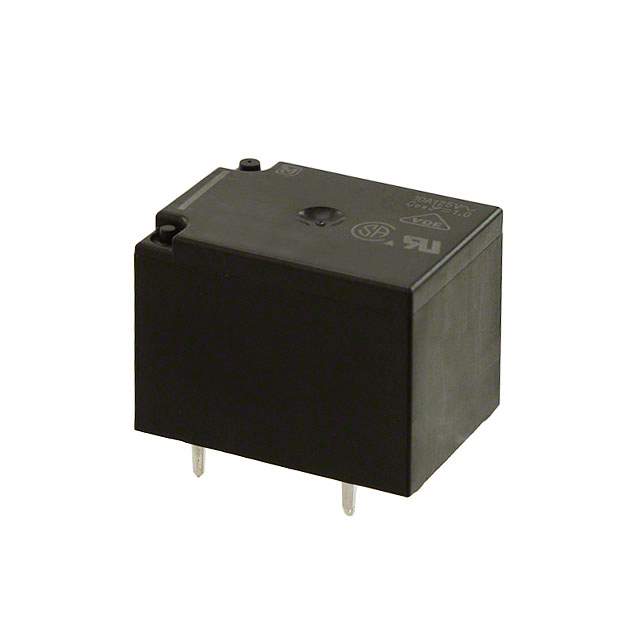

Part No JS1AF-B-24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JS
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 100VDC - Max
Coil Current 15 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class B
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.6 kOhms
Base Product Number JS1A
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1349816-JS1AF-B-24V-F
Ultra Librarian 3D Model Ultra Librarian JS1AF-B-24V-F CAD Model

Description

The Panasonic Electric Works JS1A series is a general-purpose power relay with a contact rating of 10A and a switching voltage of 250VAC and 100VDC.

  • Contact Rating: 10A
  • Switching Voltage: 250VAC and 100VDC
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.6 kOhms
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Package: Bulk
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
  • Seal Rating: Sealed-Flux Protection
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • HTSUS: 8536.41.0050
