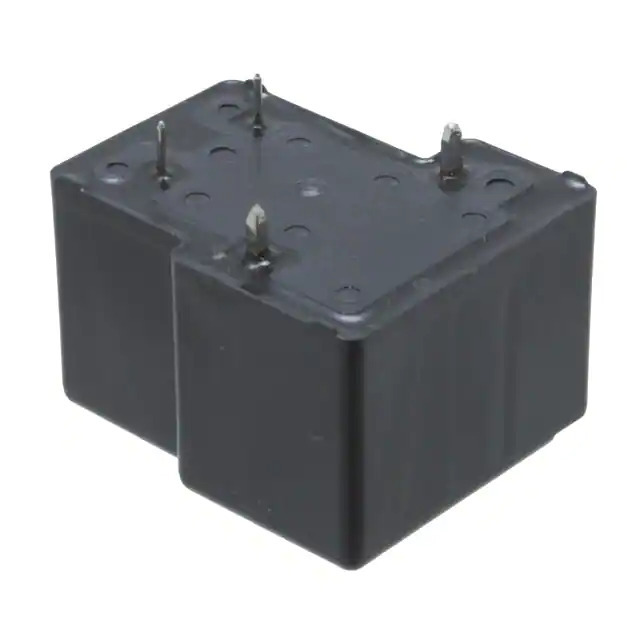

Part No JTN1AS-PA-F-DC18V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 18V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JT-N
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 18VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Max
Coil Current 44.4 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 13.5 VDC
Must Release Voltage 1.8 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 405 Ohms
Base Product Number JTN1AS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373441-JTN1AS-PA-F-DC18V
Ultra Librarian 3D Model Ultra Librarian JTN1AS-PA-F-DC18V CAD Model

Description

The JTN1AS-PA-F-DC18V is a power relay from the JT-N series by Panasonic Electric Works.

  • Relay Type: Power Relay
  • Series: JT-N
  • Coil Voltage: 18VDC
  • Contact Rating: 30A
  • Contact Form: SPST-NO (1 Form A)
  • Switching Voltage: 277VAC
  • Coil Current: 44.4mA
  • Coil Type: Non-Latching
  • Seal Rating: Fully Sealed
  • Coil Insulation Class: F
  • Must Operate Voltage: 13.5VDC
  • Must Release Voltage: 1.8VDC
  • Operate Time: 20ms
  • Release Time: 10ms
  • Relay Function: General Purpose
  • Coil Resistance: 405 Ohms
