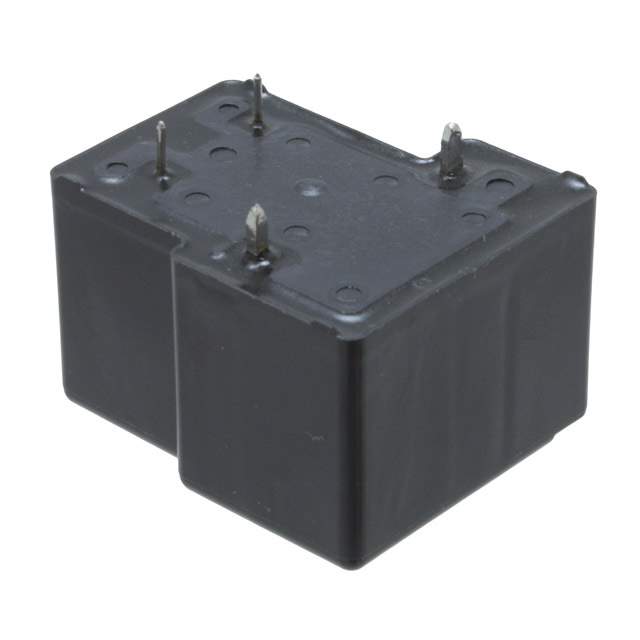

Same model may have multiple batches, images only for reference.

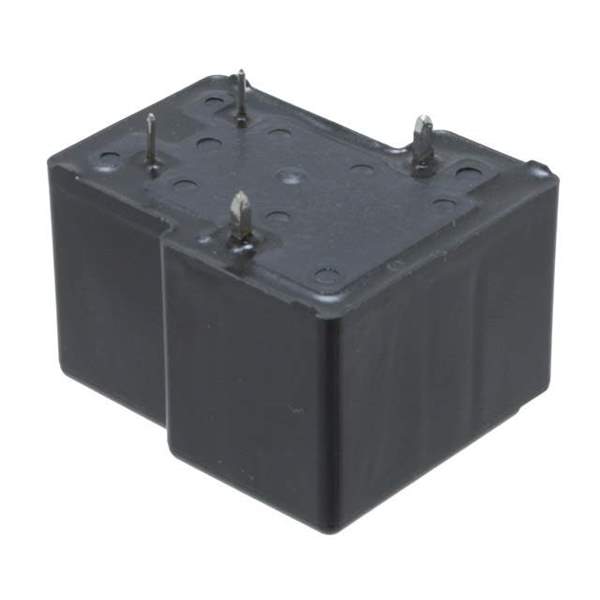

JTN1AS-PA-F-DC9V Real Image
Same model may have multiple batches, images only for reference.

JTN1AS-PA-F-DC9V

Part No JTN1AS-PA-F-DC9V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 9V / High switching capacity 1a/1c 30A power relays Heating & ventilation Home appliance
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 9VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC - Max
Coil Current 88.9mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 6.75 VDC
Must Release Voltage 0.9 VDC
Operate Time 20ms
Release Time 10ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 101 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804781-JTN1AS-PA-F-DC9V
Ultra Librarian 3D Model Ultra Librarian JTN1AS-PA-F-DC9V CAD Model

Description

The Panasonic Electric Works JTN1AS-PA-F-DC9V is a general-purpose relay that is designed to switch high currents.

  • Coil Voltage: 9VDC
  • Contact Rating: 30A
  • Family: Relays
  • Supply and Demand Status: Balanced
  • Coil Insulation Class: F
  • Operating Temperature: -55°C to 85°C
  • Sealed: Fully
  • Must Operate Voltage: 6.75VDC
  • Must Release Voltage: 0.9VDC
