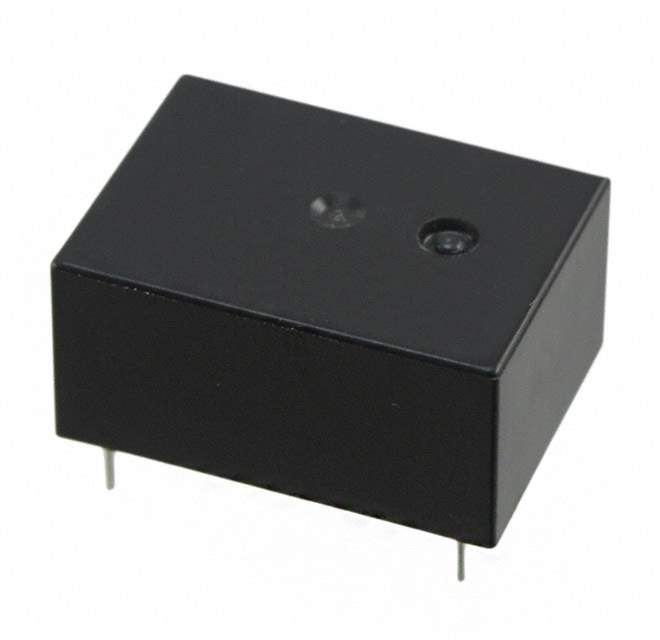

JVN1AF-6V-F Real Image
Same model may have multiple batches, images only for reference.

JVN1AF-6V-F

Part No JVN1AF-6V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 6V / General Purpose Relay SPST-NO (1 Form A) 6VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JV-N
Package Bulk
Mounting Type Through Hole
Coil Voltage 6VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 4.5 VDC
Must Release Voltage 0.3 VDC
Operate Time 12 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 180 Ohms
Base Product Number JVN1A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names -JVN1AF-6V
Standard Package 100
Win Source Part Number 1214509-JVN1AF-6V-F
Ultra Librarian 3D Model Ultra Librarian JVN1AF-6V-F CAD Model

Description

The Panasonic Electric Works JV-N series relay is a general-purpose relay with a PC pin termination style.

  • Termination Style: PC Pin
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Maximum Current: 16 A
  • Switching Voltage: 277VAC, 30VDC
  • Coil Voltage: 6VDC
  • Coil Resistance: 180 Ohms
  • Coil Current: 33.3 mA
  • Relay Type: Non-Latching
  • Operate Time: 12 ms
  • Release Time: 5 ms
  • Sealed: Flux Protection
  • Temperature Range: -40°C to 70°C
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • Standard Package: 100
  • Series: JV-N
