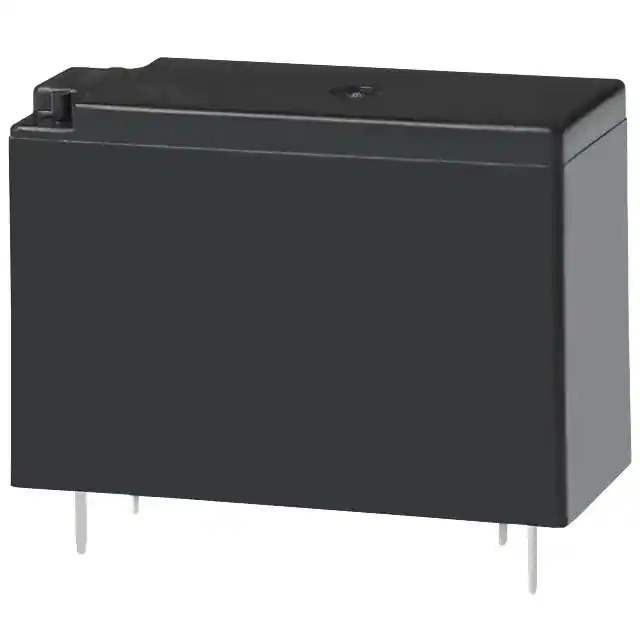

JW2SN-DC6V Real Image
Same model may have multiple batches, images only for reference.

JW2SN-DC6V

Part No JW2SN-DC6V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 6V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JW
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 6VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 88 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 4.2 VDC
Must Release Voltage 0.6 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 68 Ohms
Base Product Number JW2SN
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 876251-JW2SN-DC6V
Ultra Librarian 3D Model Ultra Librarian JW2SN-DC6V CAD Model

Description

The JW2SN-DC6V is a general-purpose power relay with a DPDT contact form.

  • Coil Voltage: 6VDC
  • Coil Resistance: 68 Ohms
  • Contact Rating: 5A
  • Switching Voltage: 250VAC, 30VDC
  • Protection: Sealed, Fully Protected
  • Temperature Range: -40°C to 60°C
  • Manufacturer: Panasonic
  • Status: Active
