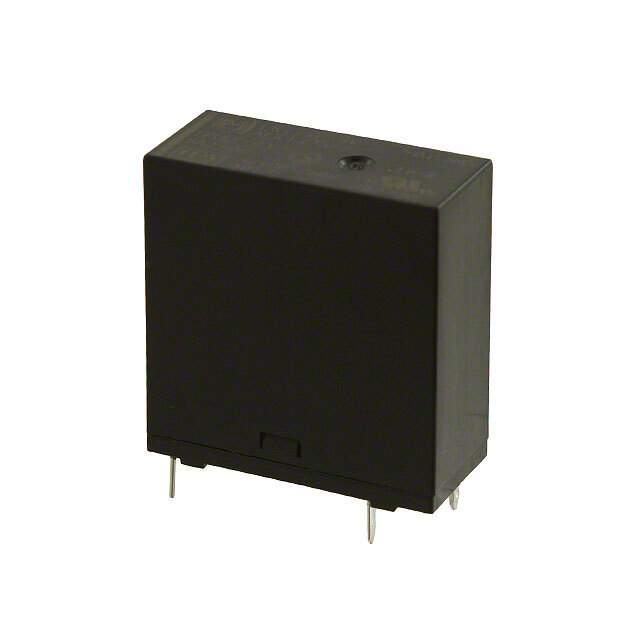

LKT1AF-9V Real Image
Same model may have multiple batches, images only for reference.

LKT1AF-9V

Part No LKT1AF-9V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 9V / General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series LK-T
Package Tray
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 277VAC - Max
Coil Current 27.8 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 6.3 VDC
Must Release Voltage 0.9 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 324 Ohms
Base Product Number LKT1AF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 255-3500,LKT1AF9V
Standard Package 100
Win Source Part Number 1069713-LKT1AF-9V
Ultra Librarian 3D Model Ultra Librarian LKT1AF-9V CAD Model

Description

The LKT1AF-9V is a general-purpose power relay that can handle over 2 Amps of current.

  • Contact Form: Single-pole, single-throw (SPST-NO)
  • Temperature Range: -40°C ~ 70°C
  • Coil Voltage: 9VDC
  • Coil Resistance: 324 Ohms
  • Switching Voltage: Up to 277VAC
  • Contact Rating: 5A
  • Mounting Type: Through-hole
  • Protection Rating: Sealed flux
  • Status: Obsolete product with alternative cross-reference parts available.
