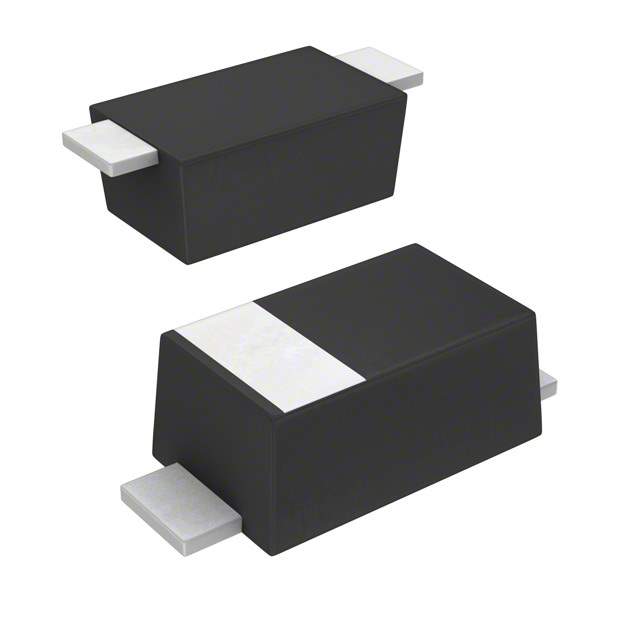

MA2YD1500L

Part No MA2YD1500L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 1A MINI2
Datasheet
MA2YD1500L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 450mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 10ns
Current - Reverse Leakage @ Vr 100μA @ 20V
Capacitance @ Vr, F 120pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F1
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 096739-MA2YD1500L
Ultra Librarian 3D Model Ultra Librarian MA2YD1500L CAD Model

Description

The MA2YD1500L is a Schottky diode manufactured by Panasonic Electronic Components.

  • Maximum Reverse Voltage: 20V
  • Average Rectified Current: 1A
  • Forward Voltage: 450mV @ 1A
  • Reverse Recovery Time: 10ns
  • Capacitance: 120pF @ 0V, 1MHz
  • Temperature Range: Up to 125°C
  • Product Family: Discrete Semiconductor Products
  • Status: Obsolete
  • Application: Power supplies, voltage regulators, switching circuits
