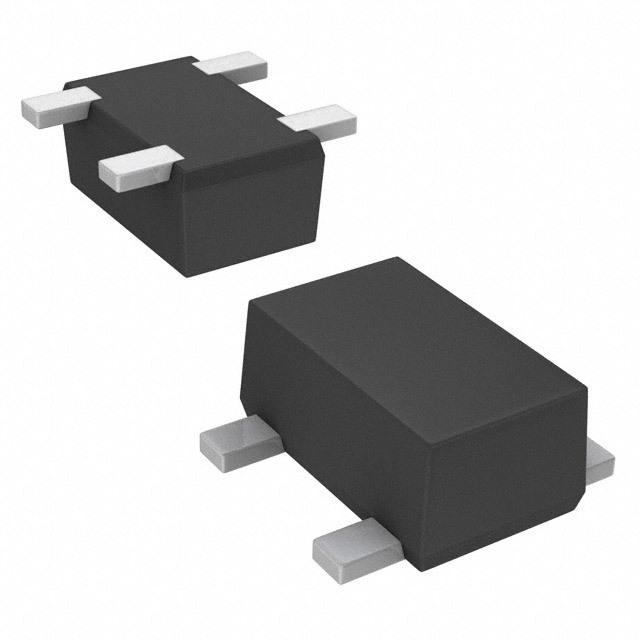

Same model may have multiple batches, images only for reference.
MA4Z71300L Panasonic
Same model may have multiple batches, images only for reference.

MA4Z71300L

Part No MA4Z71300L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SMINI4
Datasheet
MA4Z71300L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 150mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 30mA
Reverse Recovery Time (trr) 1ns
Current - Reverse Leakage @ Vr 1μA @ 30V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package SMini4-F1
Win Source Part Number 1065559-MA4Z71300L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MA4Z71300L CAD Model

Description

The MA4Z71300L is a Schottky type diode manufactured by Panasonic Electronic Components.

  • Manufacturer: Panasonic Electronic Components
  • Diode Type: Schottky
  • Maximum Reverse Voltage (Vr): 30V
  • Maximum Forward Voltage (Vf): 1V @ 30mA
  • Reverse Recovery Time (trr): 1ns
  • Current - Reverse Leakage @ Vr: 1μA @ 30V
  • Diode Configuration: 2 Independent
  • Current - Average Rectified (Io) (per diode): 150mA (DC)
  • Mounting Type: SMD (SMT)
  • Package: SMini4-F1
  • Temperature Range: -40°C to 125°C
  • Status: Obsolete (EOL)
  • Popularity: Medium
