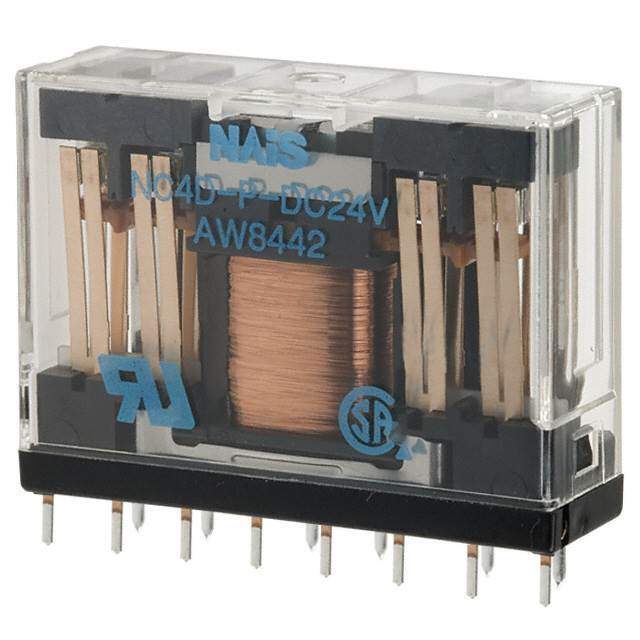

NC4D-P-DC24V Real Image
Same model may have multiple batches, images only for reference.

NC4D-P-DC24V

Part No NC4D-P-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 24V  /  General Purpose Relay 4PDT (4 Form C) 24VDC Coil Through Hole
Datasheet
NC4D-P-DC24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series NC
Package Tray
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC - Max
Coil Current 30 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 800 Ohms
Base Product Number NC4D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names NC4DPDC24V,NC4D-P-DC24V-ND,255-1938
Standard Package 20
Win Source Part Number 1025994-NC4D-P-DC24V
Ultra Librarian 3D Model Ultra Librarian NC4D-P-DC24V CAD Model

Description

The NC series power relay is a general-purpose relay with a 4PDT contact form and a coil voltage of 24VDC.

  • Contact Form: 4PDT
  • Coil Voltage: 24VDC
  • Switching Voltage: 250VAC
  • Contact Rating: 5A
  • Contact Material: silver nickel (AgNi)
  • Coil Resistance: 800 Ohms
  • Coil Current: 30 mA
  • Operate Time: 20 ms
  • Release Time: 10 ms
  • Mounting: through a hole
  • Temperature Range: -40°C to 55°C
  • Must Operate Voltage: 19.2 VDC
  • Must Release Voltage: 2.4 VDC
