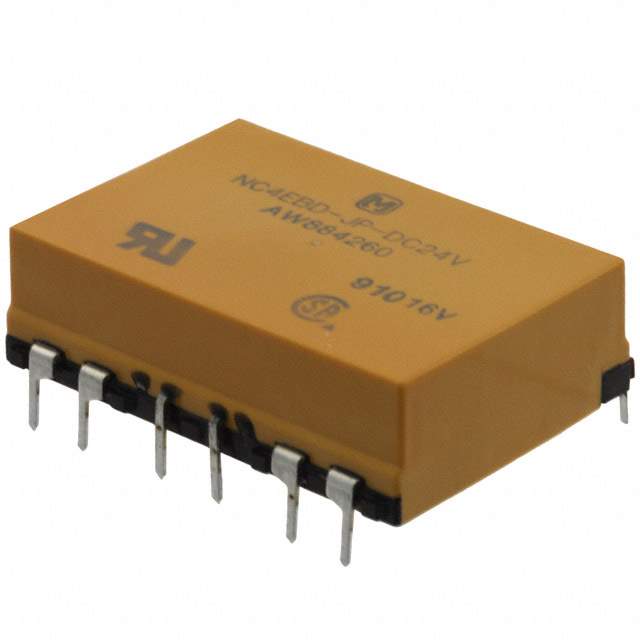

NC4EBD-JP-DC24V Real Image
Same model may have multiple batches, images only for reference.

NC4EBD-JP-DC24V

Part No NC4EBD-JP-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 24V
Datasheet
NC4EBD-JP-DC24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 20ms
Release Time 10ms
Features Sealed - Amber
Mounting Through Hole
Termination Style PC Pin
Coil Power 720 mW
Coil Resistance 800 Ohms
Temperature Range - Operating -40°C to 55°C
Win Source Part Number 209053-NC4EBD-JP-DC24V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NC4EBD-JP-DC24V CAD Model

Description

The Panasonic Electric Works 209053-NC4EBD-JP-DC24V is a high-quality general-purpose non-latching relay with a coil voltage of 24VDC.

  • Contact Form: 4PDT (4 Form C)
  • Mounting: Through-hole
  • Termination Style: PC pin
  • Color: Sealed and amber
  • Coil Voltage: 24VDC
  • Coil Resistance: 800 Ohms
  • Coil Current: 30mA
  • Operate Time: 20ms
  • Release Time: 10ms
  • Contact Rating: 5A
  • Switching Voltage: 250VAC max
  • Turn-On Voltage: 19.2VDC max
  • Turn-Off Voltage: 2.4VDC min
  • Coil Power: 720mW
  • Temperature Range: -40°C to 55°C
  • Supply: Limited
