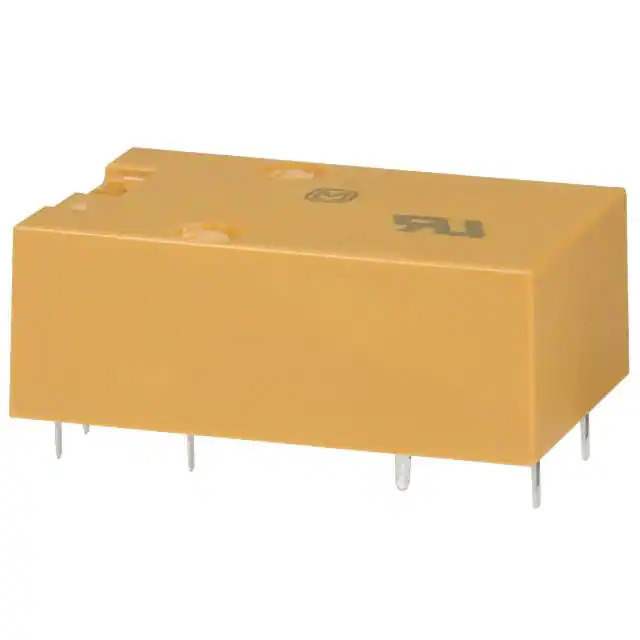

NF2EB-24V Real Image
Same model may have multiple batches, images only for reference.

NF2EB-24V

Part No NF2EB-24V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 24VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Datasheet
NF2EB-24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic
Series NF
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 220VAC, 220VDC - Max
Coil Current 20 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 2 kOhms
Base Product Number NF2EB
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 648413-NF2EB-24V
Ultra Librarian 3D Model Ultra Librarian NF2EB-24V CAD Model

Description

The NF2EB-24V is a DPDT (2 Form C) signal relay with a coil voltage of 24VDC from Panasonic.

  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 24VDC
  • Contact Rating: 2A
  • Switching Voltage: 220VAC, 220VDC
  • Coil Resistance: 2 kOhms
  • Coil Current: 20 mA
  • Operate Time: 15 ms
  • Release Time: 10 ms
  • Coil Type: Non-Latching
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 65°C
  • Series: NF
  • Package: Tube
  • Status: Obsolete
