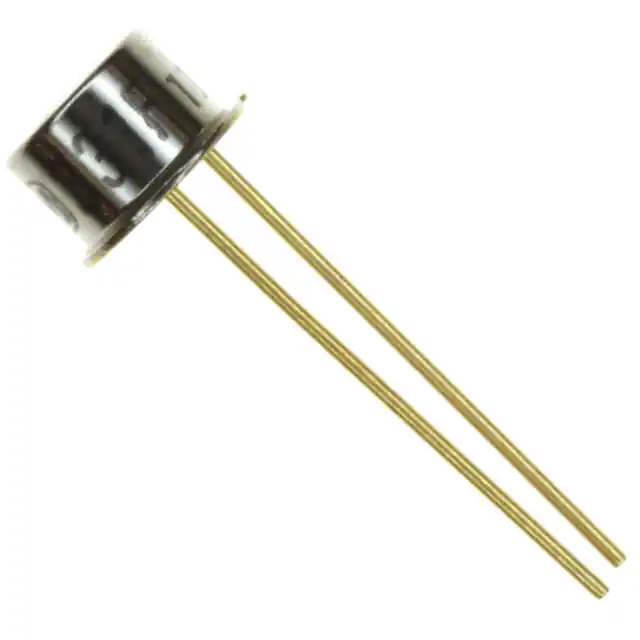

PNZ108CLR Real Image
Same model may have multiple batches, images only for reference.

PNZ108CLR

Part No PNZ108CLR
Manufacturer Panasonic
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 900NM TOP TO206AA
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Phototransistors
Mfr Panasonic
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 20 V
Current - Collector (Ic) (Max) 20 mA
Current - Dark (Id) (Max) 2 µA
Wavelength 900nm
Viewing Angle 160°
Power - Max 100 mW
Mounting Type Through Hole
Orientation Top View
Package / Case TO-206AA, TO-18-3 Metal Can
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 849002-PNZ108CLR
Ultra Librarian 3D Model Ultra Librarian PNZ108CLR CAD Model

Description

The PNZ108CLR is an optical sensor phototransistor from Panasonic. It is designed for applications that require light sensing and detection.

  • View Orientation: Top view
  • Mounting: Through hole
  • Maximum Power Rating: 100 mW
  • Voltage Breakdown: 20 V
  • Current Rating: 20 mA
  • Viewing Angle: 160°
  • Wavelength: 900nm
  • Dark Current: 2 µA
  • Package: TO-206AA, TO-18-3 Metal Can
  • Product Status: Obsolete
