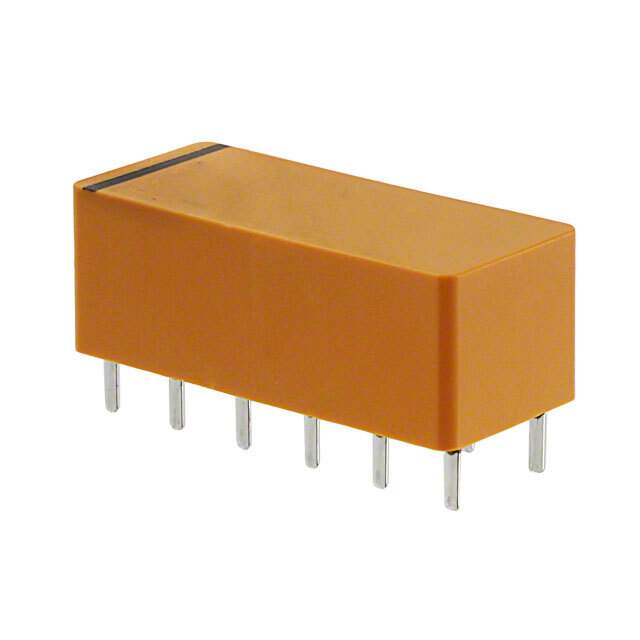

The S2EB-6V is a compact signal relay manufactured by Panasonic, part of the S2EB series. It's designed for a wide array of applications demanding reliable switching of low-level signals but operates with a 6V coil voltage.

Applications

• Telecommunications equipment
• Measurement and instrumentation devices
• Office automation equipment
• Audio and video equipment
• Security systems

Features

• Compact size
• High sensitivity
• Low operating power
• High insulation resistance
• High surge voltage resistance
• Nominal operating power: 100mW (Typical for S2EB series)
• Coil voltage: 6VDC
• Contact form: 2 Form C (DPDT)

Benefits

• Saves board space due to its compact size.
• Requires minimal power to operate, contributing to energy efficiency.
• Provides reliable switching of low-level signals.
• Offers high isolation between the coil and contacts for increased safety.
• Protects against voltage surges, enhancing the relay's durability.

Additional Details

Like other S2EB relays, the S2EB-6V likely features a bifurcated contact design, ensuring reliable contact even with low-level signals. Its construction is designed for high vibration and shock resistance, making it suitable for demanding environments. The relay is RoHS compliant, meeting environmental regulations. The primary difference between the S2EB-6V and other S2EB relays like the S2EB-5V is the coil voltage required for operation. Ensure that the correct coil voltage is used in your application to guarantee proper operation and avoid damage to the relay or associated circuitry.
