Same model may have multiple batches, images only for reference.

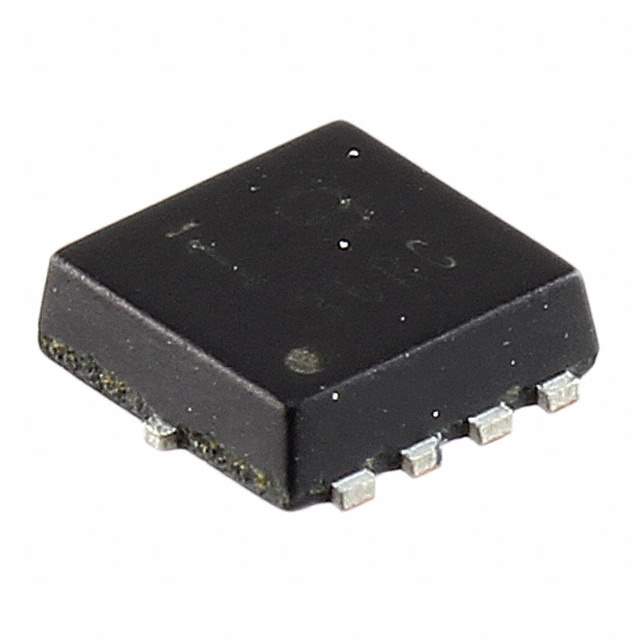

SK8403190L Real Image
Same model may have multiple batches, images only for reference.

SK8403190L

Part No SK8403190L
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Panasonic Electronic Components
Package Tape & Reel
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 10A (Ta), 19A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 10mOhm @ 70A, 10V
Vgs(th) (Max) @ Id 3V @ 1.01mA
Gate Charge (Qg) (Max) @ Vgs 6.3 nC @ 4.5 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1092 pF @ 10 V
Power Dissipation (Max) 2W (Ta), 19W (Tc)
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package HSSO8-F1-B
Package / Case 8-PowerSMD, Flat Leads
Other Names P16266CT,P16266TR,P16266DKR
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1278203-SK8403190L
Ultra Librarian 3D Model Ultra Librarian SK8403190L CAD Model

Description

The Panasonic Electronic Components SK8403190L is a MOSFET transistor that is commonly used in various electronic applications.

  • Packaging: Tape and reel
  • Temperature Range: 150°C
  • Drain to Source Voltage (Vdss): 30V
  • Current Continuous Drain (Id): 10A (Ta), 19A (Tc)
  • Power Dissipation: 2W (Ta), 19W (Tc)
  • Package: 8-PowerSMD, Flat Leads
  • Applications: FETs, MOSFETs, and single transistor applications
