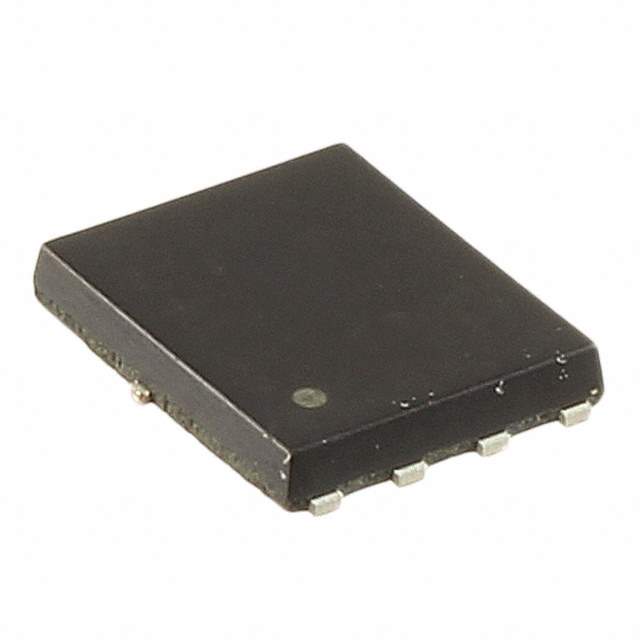

The SK8603190L is an N-channel MOSFET manufactured by Panasonic Electronic Components. The supply and demand status of this product is balanced.

• Power Dissipation: 2.7W (Ta), 19W (Tc)
• Continuous Drain Current: 12A (Ta), 19A (Tc) @ 25°C
• Drain-Source Breakdown Voltage: 30V
• Maximum Rds On @ Id, Vgs: 10 mOhm @ 8A, 10V
• Gate-Source Threshold Voltage: 3V @ 1.01mA
• Maximum Gate Charge: 6.3nC @ 4.5V
• Maximum Input Capacitance: 1092pF @ 10V
• Maximum Gate-Source Voltage: ±20V
• Mounting Type: surface-mount device
• Package: 8-HSO package and 8-PowerSMD, Flat Leads dimensions
• Operating Temperature: 150°C (TJ)
• Drive Voltage: 4.5V, 10V (Max Rds On, Min Rds On)
