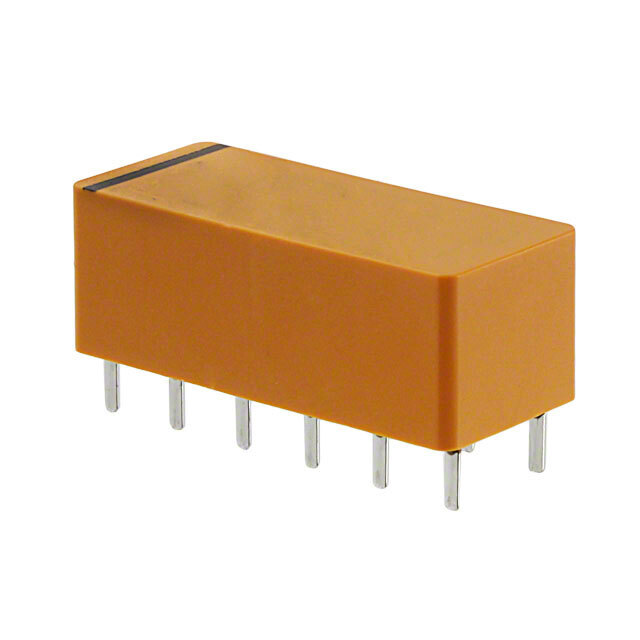

ST1-L2-DC12V-F Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ST1-L2-DC12V-F

Part No ST1-L2-DC12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 8 A
Switching Voltage 380VAC, 250VDC - Max
Load - Max Switching 3040VA, 2000W
Coil Current 18.8 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 9.6 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Approval Agency CSA, UR, VDE
Relay Type General Purpose
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1549529-ST1-L2-DC12V-F
Ultra Librarian 3D Model Ultra Librarian ST1-L2-DC12V-F CAD Model
