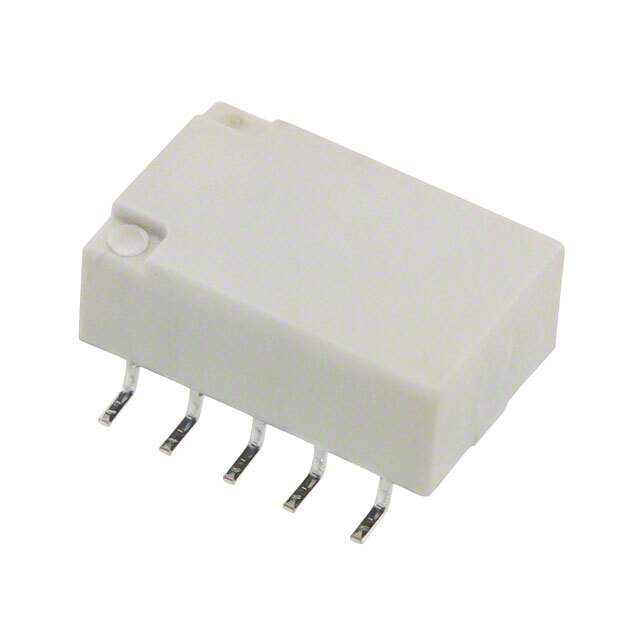

TQ2SA-9V-Z Real Image
Same model may have multiple batches, images only for reference.

TQ2SA-9V-Z

Part No TQ2SA-9V-Z
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 9V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 15.5mA
Coil Voltage 9VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 125VAC, 220VDC - Max
Turn On Voltage (Max) 6.75 VDC
Turn Off Voltage (Min) 0.9 VDC
Operate Time 4ms
Release Time 4ms
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 579 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 144627-TQ2SA-9V-Z
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Signal Processing, Communications & Networking, Test & Measurement
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian TQ2SA-9V-Z CAD Model

Description

The TQ2SA-9V-Z by Panasonic Electric Works is a DPDT (2 Form C) relay with a gull wing termination style.

  • Coil Voltage: 9VDC
  • Coil Resistance: 579 Ohms
  • Contact Rating: 2A
  • Switching Voltage: 125VAC and 220VDC
