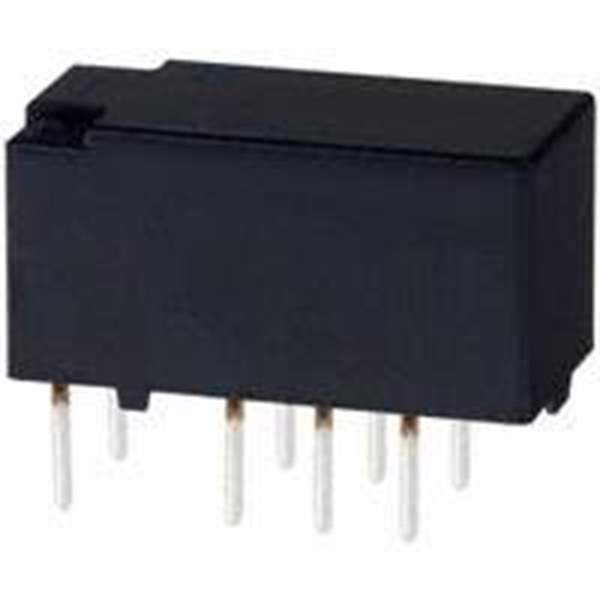

TX2-24V Real Image TX2-24V real image9483
Same model may have multiple batches, images only for reference.
TX2-24V Real Image TX2-24V real image9483
TX2-24V Real Image TX2-24V real image9483
Same model may have multiple batches, images only for reference.

TX2-24V

Part No TX2-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 24V
Datasheet
TX2-24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 5.8mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 4ms
Release Time 4ms
Features 7.5A Inrush, Sealed-Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 140 mW
Coil Resistance 4.11 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 397131-TX2-24V
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Communications & Networking, Test & Measurement, Security, Medical, Audio, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian TX2-24V CAD Model

Description

The TX2-24V from Panasonic Electric Works is a DPDT (2 Form C) relay with a contact rating of 2A. It comes with a win source part number of 397131 and has a medium popularity.

  • Contact Rating: 2A
  • Win Source Part Number: 397131
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Production Lead Time: 4ms
  • Package: 1 piece
  • HTSUS: N/A
  • Application: communications and networking, test and measurement, security, medical, audio, and consumer electronics
