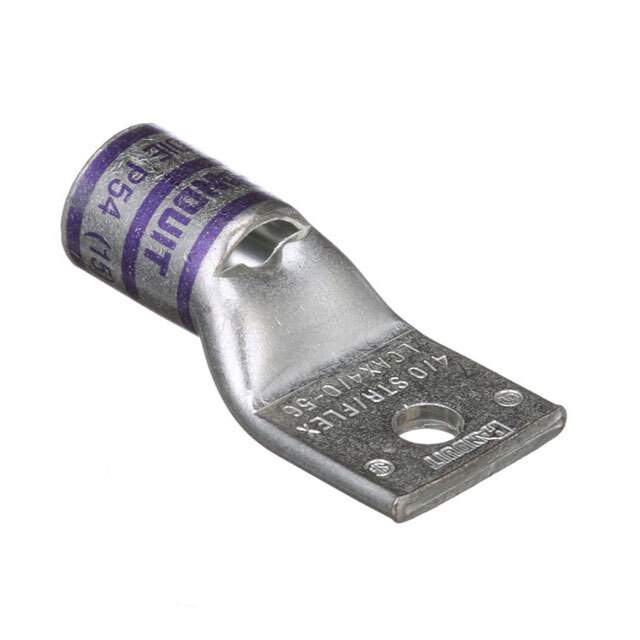

LCAX4/0-56-X Real Image
Same model may have multiple batches, images only for reference.

LCAX4/0-56-X

Part No LCAX4/0-56-X
Manufacturer Panduit Corp
Catalog Rectangular Connectors
Description CONN TERM RECT TONG 4/0AWG #5/16 / Terminal Connector Rectangular Rectangular Tongue 4/0 AWG 5/16 Stud
Datasheet
LCAX4/0-56-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr Panduit Corp
Series Pan-Lug®
Package Bulk
Terminal Type Rectangular Tongue
Stud/Tab Size 5/16 Stud
Terminal Style Single Stud Hole
Tab Thickness 0.160" (4.06mm)
Length - Overall 2.530" (64.26mm)
Width - Outer Edges 1.190" (30.23mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Barrel
Wire Gauge 4/0 AWG
Insulation Non-Insulated
Color Purple
Contact Finish Electro-Tin
Contact Material Copper
Diameter - Barrel ID 0.650" (16.51mm)
Diameter - Barrel OD 0.810" (20.57mm)
Diameter - Ring ID 0.340" (8.64mm)
Base Product Number LCAX
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names LCAX4/0-56-X-ND,298-14754,07498343557
Standard Package 1
Win Source Part Number 1047170-LCAX4/0-56-X
Ultra Librarian 3D Model Ultra Librarian LCAX4/0-56-X CAD Model

Description

This rectangular connector terminal is a non-insulated product manufactured by Panduit Corp. The product has a Win Source Part Number of 1047170-LCAX4/0-56-X and belongs to the Connectors, Interconnects>Terminals - Rectangular Connectors category. The terminal has a wire gauge of 4/0 AWG and a stud/tab size of 5/16 Stud. The product has a terminal style of a single stud hole and a tab thickness of 0.160" (4.06mm). The terminal has a width of outer edges of 1.190" (30.23mm) and a length overall of 2.530" (64.26mm).
