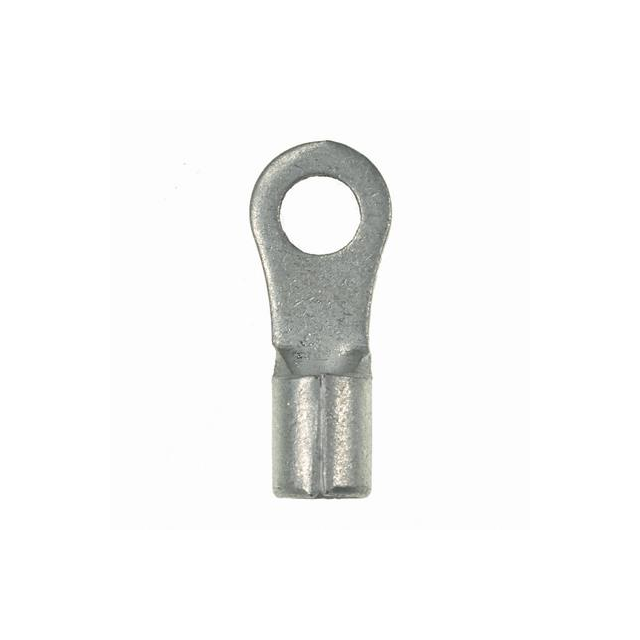

P12-6HDR-L Real Image
Same model may have multiple batches, images only for reference.

P12-6HDR-L

Part No P12-6HDR-L
Manufacturer Panduit Corp
Catalog Terminals
Description CONN RING CIRC 12-16AWG #6 CRIMP / Ring Tongue Terminal 12-16AWG Copper 19.81mm Tin Bottle
Datasheet
P12-6HDR-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panduit Corp
Series Pan-Term
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 6 Stud
Thickness 0.050" (1.27mm)
Width - Outer Edges 0.310" (7.87mm)
Length - Overall 0.780" (19.81mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 12-16 AWG
Insulation Non-Insulated
Features Brazed Seam, Heavy Duty
Contact Material Copper
Contact Finish Tin
Win Source Part Number 769491-P12-6HDR-L
Popularity Medium
Supply and Demand Status Limited
Family Name P12
Introduction Date February 08, 2007
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian P12-6HDR-L CAD Model

Description

Panduit Corp brings you the P12-6HDR-L, a heavy-duty, non-insulated circular terminal type connector that can be crimped.

  • Thickness: 0.050" (1.27mm)
  • Width: 0.310" (7.87mm)
  • Overall Length: 0.780" (19.81mm)
  • Wire Gauge: 12-16 AWG
  • Stud/Tab Size: 6 Stud
  • Contact Material: Copper
  • Finish: Tin
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2025
