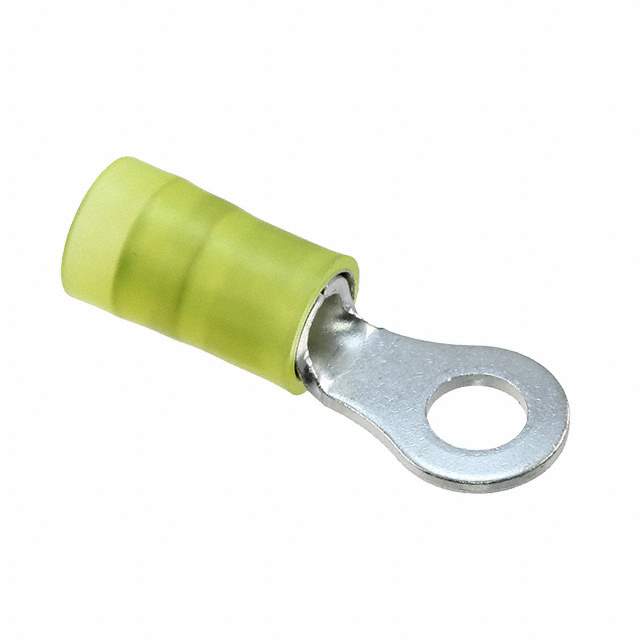

Same model may have multiple batches, images only for reference.

PN10-10R-L

Name: PN10-10R-L
Brand: Panduit Corp
SKU: 1001162
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PN10-10R-L
Manufacturer	Panduit Corp
Catalog	Terminals
Description	CONN RING CIRC 10-12AWG #10 / Ring Terminal Connector 10 Stud Circular 10-12 AWG Crimp
Datasheet	PN10-10R-L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Ring Connectors
Mfr	Panduit Corp
Series	Pan-Term®
Package	Bulk
Terminal Type	Circular
Stud/Tab Size	10 Stud
Thickness	0.040" (1.02mm)
Width - Outer Edges	0.380" (9.65mm)
Length - Overall	1.060" (26.92mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp
Wire Gauge	10-12 AWG
Insulation	Insulated
Color	Yellow
Contact Material	Copper
Contact Finish	Tin
Insulation Diameter	0.225" (5.72mm)
Material - Insulation	Polyamide (PA), Nylon
Base Product Number	PN10
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	298-10629,PN10-10R-L-ND
Standard Package	50
Win Source Part Number	1001162-PN10-10R-L
Ultra Librarian 3D Model	Ultra Librarian PN10-10R-L CAD Model

Alternative Products

Description

This is a yellow Pan-Term® ring connector from Panduit Corp.

Termination: Crimp
Wire Gauge: 10-12 AWG
Contact Material: Copper
Insulation Material: Polyamide (PA), Nylon
Insulation Diameter: 0.225" (5.72mm)
Stud/Tab Size: 10 stud
Category: Connectors, Interconnects>Terminals - Ring Connectors
Standard Package: 50
Width: 0.380" (9.65mm)
Overall Length: 1.060" (26.92mm)
Insulated: Yes
Thickness: 0.040" (1.02mm)
