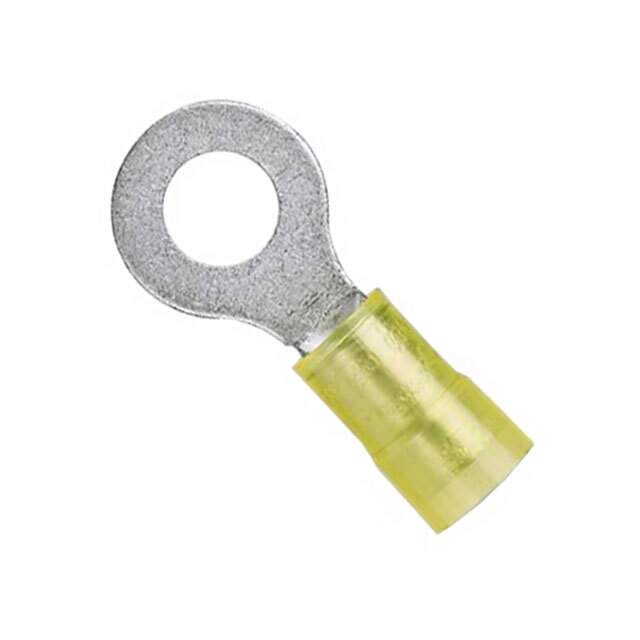

Same model may have multiple batches, images only for reference.

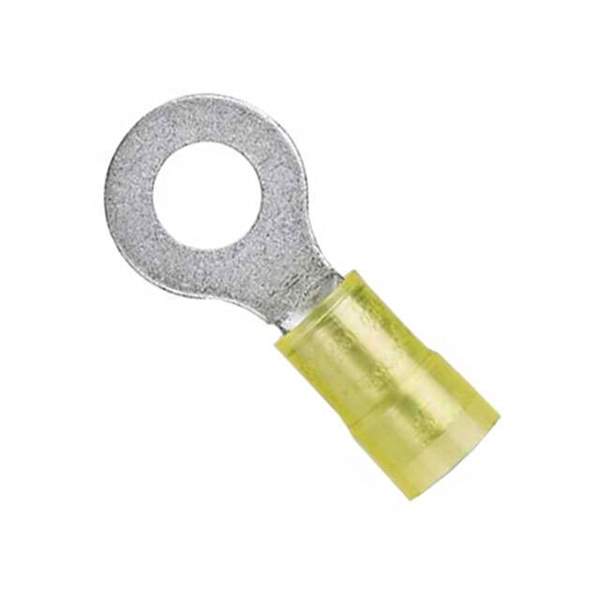

PN10-12R-Q Real Image
Same model may have multiple batches, images only for reference.

PN10-12R-Q

Part No PN10-12R-Q
Manufacturer Panduit Corp
Catalog Terminals
Description CONN RING CIRC 10-12AWG #1/2 / Ring Terminal Connector 1/2 Stud Circular 10-12 AWG Crimp
Datasheet
PN10-12R-Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Terminal Type Circular
Stud/Tab Size 1/2 Stud
Thickness 0.040" (1.02mm)
Width - Outer Edges 0.720" (18.29mm)
Length - Overall 1.470" (37.34mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Insulated
Features Serrated Termination
Color Yellow
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.120" ~ 0.225" (3.05mm ~ 5.72mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number PN10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 298-11954,PN10-12R-Q-ND,07498312028
Standard Package 25
Win Source Part Number 961295-PN10-12R-Q
Ultra Librarian 3D Model Ultra Librarian PN10-12R-Q CAD Model

Description

The PN10-12R-Q is a circular ring connector terminal from the Pan-Term series.

  • Series: Pan-Term
  • Wire Gauge: 10-12 AWG
  • Termination: Serrated termination for secure crimping
  • Material: Copper with a tin finish
  • Insulation Material: Polyamide (PA), nylon
  • Stud/Tab Size: 1/2
  • Thickness: 0.040" (1.02mm)
  • Overall Length: 1.470" (37.34mm)
  • Width (Outer Edges): 0.720" (18.29mm)
  • Packaging: Bulk
  • Mounting: Free-hanging (in-line)
