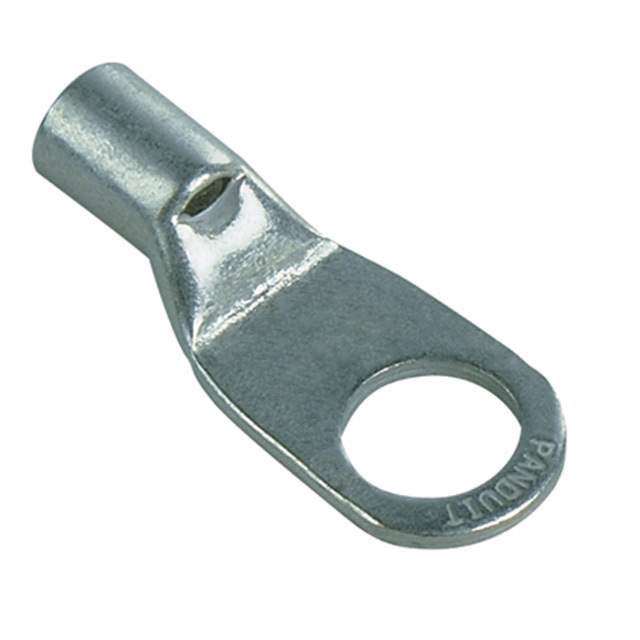

S6-56R-E Real Image
Same model may have multiple batches, images only for reference.

S6-56R-E

Part No S6-56R-E
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S6-56R-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 5/16 Stud
Thickness 0.070" (1.78mm)
Width - Outer Edges 0.560" (14.22mm)
Length - Overall 1.400" (35.56mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 6 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S6-56
Other Names S6-56R-E,298-11889
Standard Package 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285155-S6-56R-E
Ultra Librarian 3D Model Ultra Librarian S6-56R-E CAD Model

Description

The Panduit Corp S6-56R-E is a non-insulated ring connector designed for free hanging (in-line) mounting.

  • Mounting: Free Hanging (In-Line)
  • Wire Gauge: 6 AWG
  • Stud/Tab Size: 5/16 Stud
  • Contact Material: Copper
  • Contact Finish: Tin
  • Dimensions: 35.56 mm x 14.22 mm x 1.78 mm
  • Packaging: Bulk
  • Standard Package: 20
  • ECCN: EAR99
  • HTSUS: 8536.90.4000
