Same model may have multiple batches, images only for reference.

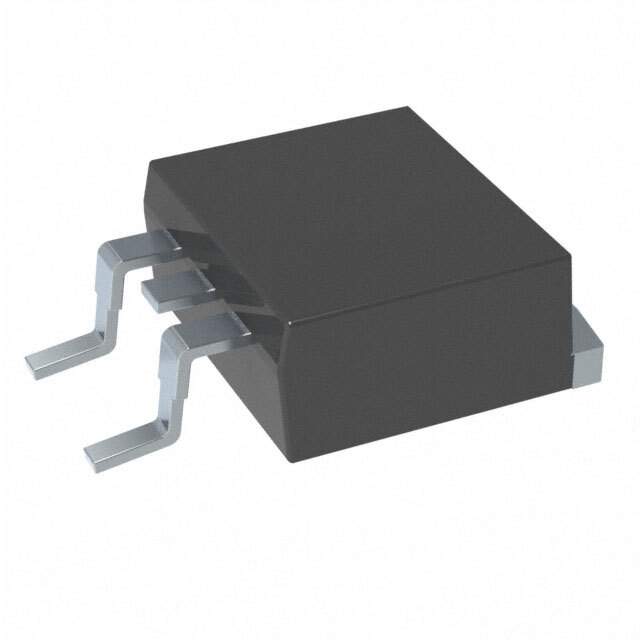

MBR1645DC_R2_00001 Real Image
Same model may have multiple batches, images only for reference.

MBR1645DC_R2_00001

Part No MBR1645DC_R2_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Description D PAK SURFACE SCHOTTKY BARRIER R  /  Diode Array 1 Pair Common Cathode Schottky 45 V 16A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Datasheet
MBR1645DC_R2_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Panjit International Inc.
Package Tape & Reel
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) (per Diode) 16A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 45 V
Operating Temperature - Junction -65°C ~ 175°C
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-MBR1645DC_R2_00001DKR,3757-MBR1645DC_R2_00001CT,3757-MBR1645DC_R2_00001TR
Standard Package 800
Win Source Part Number 1076495-MBR1645DC_R2_00001
Ultra Librarian 3D Model Ultra Librarian MBR1645DC_R2_00001 CAD Model

Description

The MBR1645DC_R2_00001 is a high-quality diode rectifier array from Panjit International Inc. It has a fast recovery speed of < 500ns, > 200mA (Io) and a voltage - DC reverse (Vr) (Max) of 45 V.

  • Diode Type: Schottky
  • Voltage - Forward (Vf) (Max) @ If: 700 mV @ 8 A
  • Current - Reverse Leakage @ Vr: 50 µA @ 45 V
  • Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
