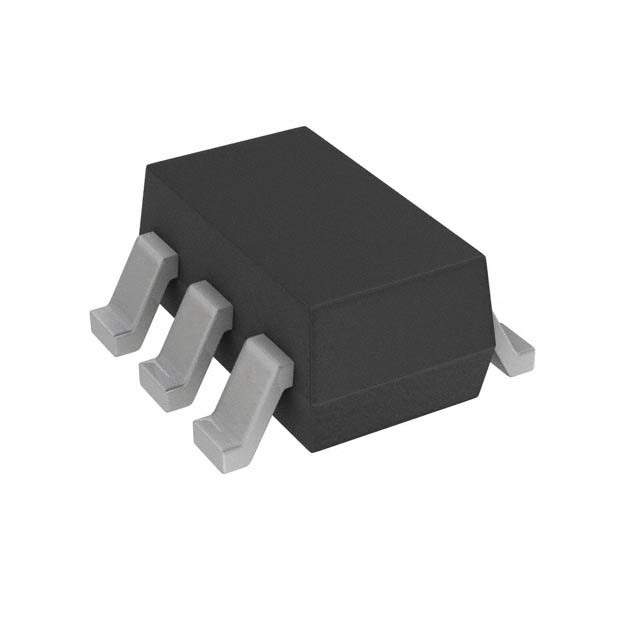

PJS6403_S1_00001

Name: PJS6403_S1_00001
Brand: Panjit
SKU: 1085309
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PJS6403_S1_00001
Manufacturer	Panjit
Catalog	Transistors - FETs, MOSFETs - RF
Description	30V P-CHANNEL ENHANCEMENT MODE M / P-Channel 30 V 6.4A (Ta) 2W (Ta) Surface Mount SOT-23-6
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Panjit International Inc.
Package	Tape & Reel
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	6.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	32mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.8 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	870 pF @ 15 V
Power Dissipation (Max)	2W (Ta)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	SOT-23-6
Package / Case	SOT-23-6
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	3757-PJS6403_S1_00001TR,3757-PJS6403_S1_00001CT,3757-PJS6403_S1_00001DKR
Standard Package	3,000
Win Source Part Number	1085309-PJS6403_S1_00001
Ultra Librarian 3D Model	Ultra Librarian PJS6403_S1_00001 CAD Model

Alternative Products

Description

The Panjit PJS6403_S1_00001 is a P-channel MOSFET transistor with a drain-to-source voltage of 30 V and continuous drain current of 6.4 A @ 25°C.

Drain-to-Source Voltage: 30 V
Continuous Drain Current: 6.4 A @ 25°C
Maximum Rds on: 32mOhm @ 4A and 10V
Gate Charge: 7.8 nC @ 4.5 V
Input Capacitance: 870 pF @ 15 Vds
Package: SOT-23-6
Packaging: Tape and Reel
Maximum Gate-Source Voltage: ±20V
Temperature Range: -55°C to 150°C
Drive Voltage: 4.5V and 10V
