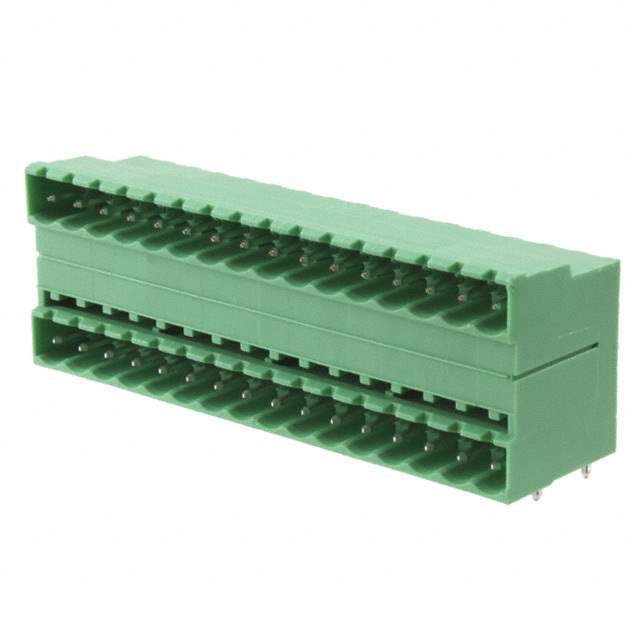

Same model may have multiple batches, images only for reference.

1762509

Name: 1762509
Brand: Phoenix Contact
SKU: 1332222
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1762509
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 32POS 5.08MM / 32 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	32
Positions Per Level	16
Number of Levels	2
Pitch	0.200" (5.08mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	10A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.138" (3.50mm)
Insulation Height	1.122" (28.50mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	MDSTB2,5/16-G1-5,08,277-1412,277-1412-NDR,MDSTB 2,5/16-G1-5,08
Standard Package	50
Win Source Part Number	1332222-1762509
Ultra Librarian 3D Model	Ultra Librarian 1762509 CAD Model

Alternative Products

Description

The 1332222-1762509 is a terminal block header manufactured by Phoenix Contact.

Component Type: Male pin, shrouded header with 4 sides
Positions: 32
Positions per Level: 16
Levels: 2
Pitch: 0.200 inches (5.08mm)
Header Orientation: Right-angle, 90 degrees
Maximum Operating Voltage: 630V
Maximum Operating Current: 10A
Housing Material: Polyamide (PA), Nylon
Material Flammability Rating: UL94 V-0
Standard Package: 50
Mounting: Through-hole
