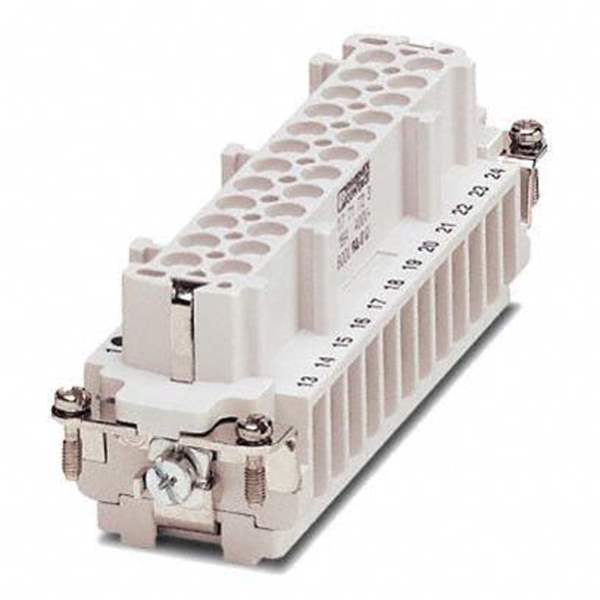

1772094
Same model may have multiple batches, images only for reference.

1772094

Part No 1772094
Manufacturer Phoenix Contact
Catalog Heavy Duty Connectors
Description INSERT FEMALE 24POS SCREW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Inserts, Modules
Mfr Phoenix Contact
Series HEAVYCON® B24
Package Bulk
Product Status Obsolete
Connector Type Insert
Gender Female
Number of Positions 24
Size B24
Termination Style Screw
Voltage Rating 600V
Current Rating (Amps) 15A
Temperature Range - Operating -40°C ~ 125°C
Housing Material Polyamide (PA), Nylon
Contact Material Copper Alloy
Contact Finish Silver
Material Flammability Rating UL94 V-0
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 913800-1772094
Ultra Librarian 3D Model Ultra Librarian 1772094 CAD Model

Description

The 913800-1772094 is a heavy-duty connector insert module from the HEAVYCON® B24 series.

  • Positions: 24
  • Termination: Screw
  • Gender: Female
  • Voltage: 600V
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Phoenix Contact
  • Materials: Polyamide (PA) and nylon
  • Status: Obsolete
