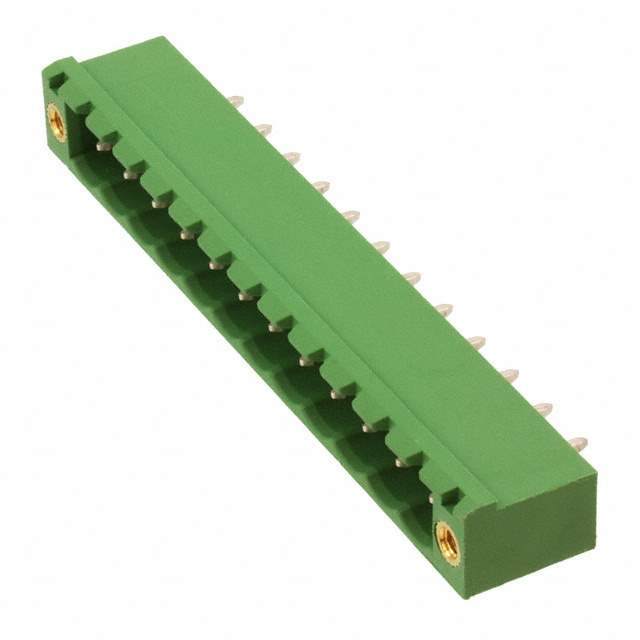

1777170 Real Image
Same model may have multiple batches, images only for reference.

1777170

Part No 1777170
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 12POS VERT 5.08MM / 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Positions Per Level 12
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Termination Style Solder
Mounting Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 12 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Features Mating and Mounting Flange
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.154" (3.90mm)
Insulation Height 0.472" (12.00mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number MSTBV2,5/12-GF-5,08,1777170-NDR,277-5907,1777170-ND
Standard Package 50
Win Source Part Number 1332276-1777170
Ultra Librarian 3D Model Ultra Librarian 1777170 CAD Model

Description

The Phoenix Contact 1332276-1777170 is a male pin header with 12 positions per level and 12 levels.

  • Positions Per Level: 12
  • Number of Levels: 12
  • Pitch: 0.200 inches
  • Features: Shrouded
  • Header Orientation: Vertical
  • Termination Style: Solder
  • Current Rating (IEC): 12A
  • Voltage Rating (IEC): 630V
  • Voltage Rating (UL): 300V
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Material Flammability Rating: UL94 V-0
  • Contact Mating Finish: Tin
  • RoHS Compliant: Yes
  • Packaging: Bulk
  • Insulation Height: 0.472 inches
  • Contact Tail Length: 0.154 inches
