Same model may have multiple batches, images only for reference.

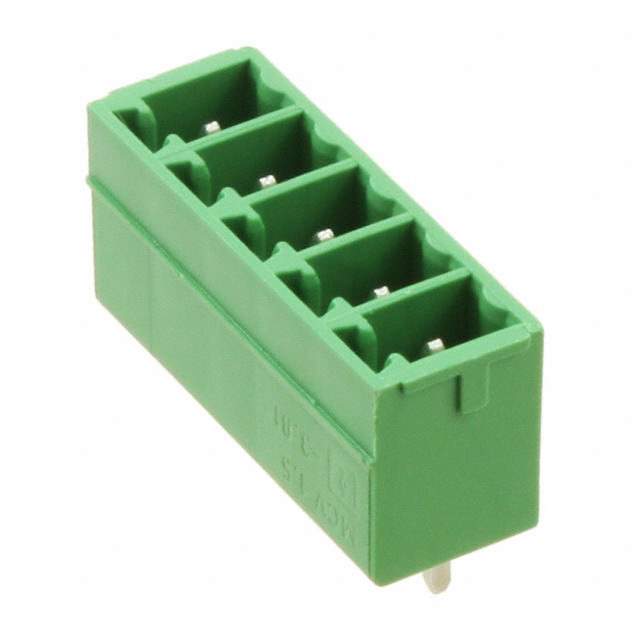

1803455 Real Image
Same model may have multiple batches, images only for reference.

1803455

Part No 1803455
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 5POS VERT 3.81MM / 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Positions Per Level 5
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation Vertical
Termination Style Solder
Mounting Through Hole
Current - IEC 8A
Voltage - IEC 250 V
Current - UL 8 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.134" (3.40mm)
Insulation Height 0.362" (9.20mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 277-1224,MCV 1.5/5-G-3.81,MCV1,5/5-G-3,81
Standard Package 250
Win Source Part Number 1332243-1803455
Ultra Librarian 3D Model Ultra Librarian 1803455 CAD Model

Description

The 1332243-1803455 is a male pin header with 5 positions per level and 5 levels, manufactured by Phoenix Contact.

  • Positions per Level: 5
  • Levels: 5
  • Pitch: 0.150 inches
  • Shrouded: All sides
  • Orientation: Vertical
  • Termination Style: Solder
  • Current Rating: 8A
  • Voltage Rating (IEC): 250V
  • Voltage Rating (UL): 300V
  • Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Contact Mating Finish: Tin
  • RoHS Compliant: Yes
  • Packaging: Bulk
  • Insulation Height: 0.362 inches
  • Contact Tail Length: 0.134 inches
