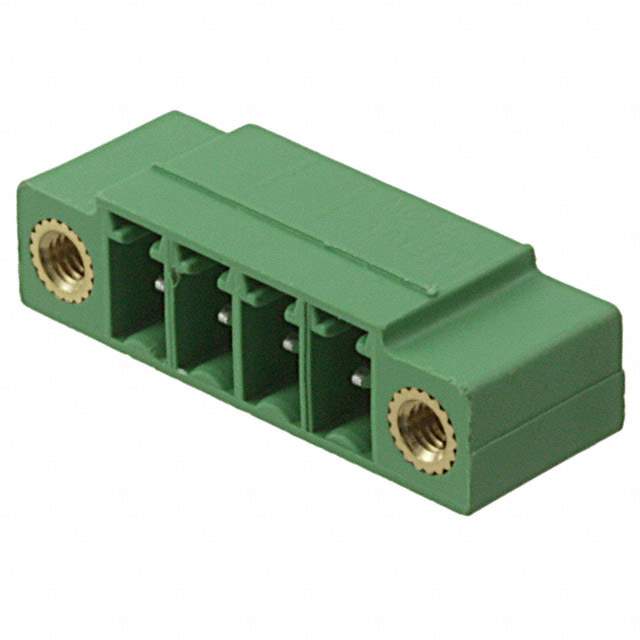

1827884 Real Image
Same model may have multiple batches, images only for reference.

1827884

Part No 1827884
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLOCK HDR 4POS 90DEG 3.81MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Style Through Hole
Current - IEC 8A
Voltage - IEC 250V
Current - UL 8A
Voltage - UL 300V
Color Green
Contact Mating Finish Tin
Features Mating and Mounting Flange
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.134" (3.40mm)
Insulation Height 0.285" (7.25mm)
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809770-1827884
Ultra Librarian 3D Model Ultra Librarian 1827884 CAD Model

Description

The Phoenix Contact 809770-1827884 is a header with male pins and shrouded sides. It has four positions per level and one level. The pitch is 0.150 inches (3.81mm), and the header orientation is 90 degrees, right-angle.

  • Termination Style: Solder
  • Mounting Style: Through-hole
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Contact Mating Finish: Tin
  • Features: Mating and Mounting Flanges
