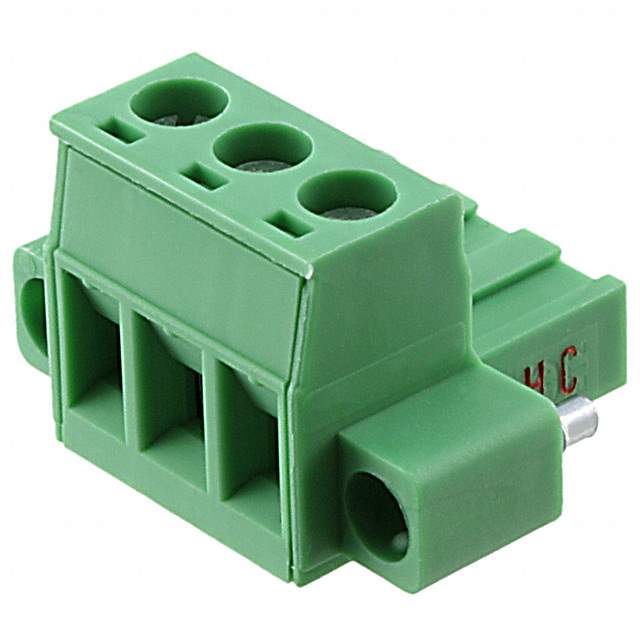

Same model may have multiple batches, images only for reference.

1912197

Name: 1912197
Brand: Phoenix Contact
SKU: 1334603
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1912197
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 3POS STR 5.08MM / 3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	3
Positions Per Level	3
Number of Levels	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	16A
Voltage - IEC	630 V
Current - UL	16 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591" (15.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	277-9032,MSTB2.5HC/3-STF-5.08,1912197-ND,MSTB 2.5 HC/ 3-STF-5.08
Standard Package	50
Win Source Part Number	1334603-1912197
Ultra Librarian 3D Model	Ultra Librarian 1912197 CAD Model

Alternative Products

Description

The Phoenix Contact 1148054 is a plug, female sockets terminal block with 3 positions per level and 3 levels.

Manufacturer: Phoenix Contact
Positions per Level: 3
Levels: 3
Pitch: 0.200" (5.08mm)
Wire Gauge or Range: 12-30 AWG and 0.2-2.5mm2
Packaging: Bulk
Mounting Style: Free Hanging (In-Line)
Termination Style: Screw - Rising Cage Clamp
Torque: 0.5-0.6 Nm (4.4-5.3 Lb-In)
Screw Size: M3
Current Rating: 16A
Voltage Rating: 630V (IEC) and 300V (UL)
Category: Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
