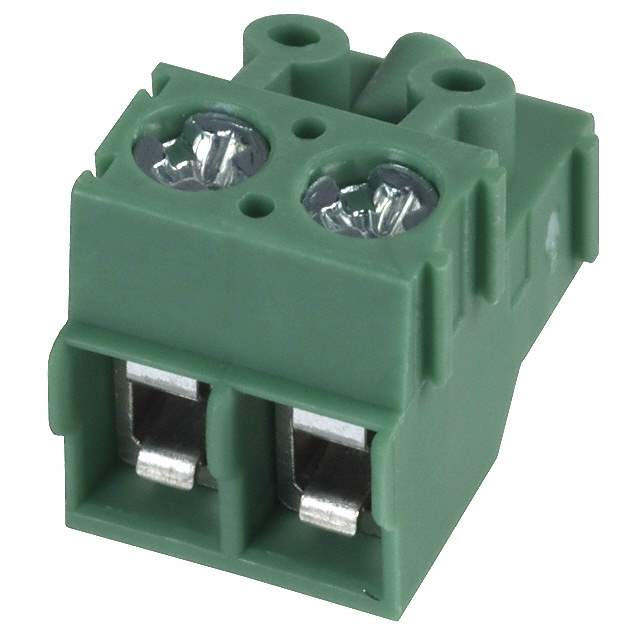

Same model may have multiple batches, images only for reference.

1934861

Name: 1934861
Brand: Phoenix Contact
SKU: 1332319
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1934861
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 2POS 90DEG 5MM / 2 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line)
Datasheet	1934861 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug for Unshrouded Header
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.197" (5.00mm)
Plug Wire Entry	90°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-26 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Screw Size	M2.6
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Wire Strip Length	5mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.449" (11.40mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	277-1607,PT1.5/2-PVH-5.0,PT 1.5/2-PVH-5.0
Standard Package	250
Win Source Part Number	1332319-1934861
Ultra Librarian 3D Model	Ultra Librarian 1934861 CAD Model

Alternative Products

Description

The Phoenix Contact 1332319-1934861 is a plug for unshrouded header with 2 positions and 2 positions per level.

Pitch: 0.197 inches (5.00mm)
Current - IEC: 12A
Voltage - IEC: 630V
Current - UL: 15A
Voltage - UL: 300V
Wire Gauge or Range - AWG: 12-26 AWG
Wire Gauge or Range - mm2: 0.2-2.5mm2
Color: Green
Contact Mating Finish: Tin
Material Flammability Rating: UL94 V-0
Standard Package: 250
Mounting Style: Free Hanging (In-Line)
Torque - Screw: 0.35-0.4 Nm (3.1-3.5 Lb-In)
Screw Size: M2.6
Wire Strip Length: 5mm
