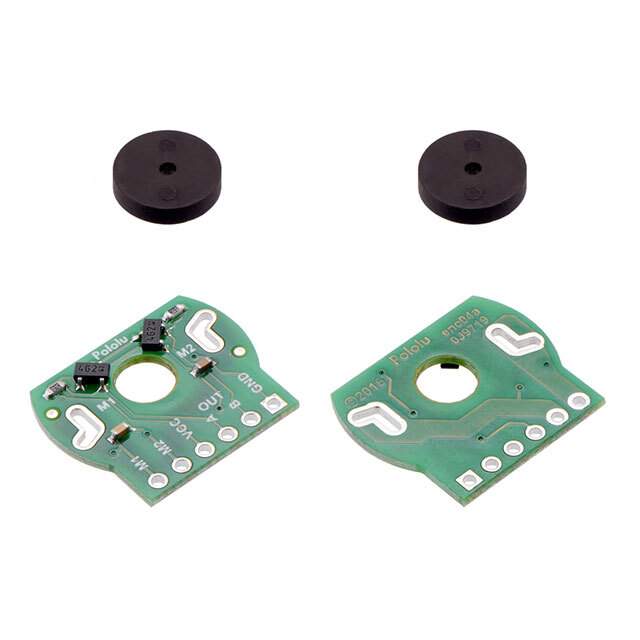

3499 Real Image
Same model may have multiple batches, images only for reference.

3499

Part No 3499
Manufacturer Pololu Corporation
Catalog Encoders
Description MAG ENC PAIR KIT 20D GEARMTRS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Pololu Corporation
Product Status Active
Programmable Not Verified
Encoder Type Magnetic
Output Type Digital, Quadtrature
Pulses per Revolution 20
Voltage - Supply 2.7V - 18V
Actuator Type External Magnet, Not Included
Detent No
Built in Switch No
Mounting Type Servo Mount
Orientation Vertical
Termination Style Surface Mount (SMD,SMT)
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8543.90.9000
Win Source Part Number 906632-3499
Ultra Librarian 3D Model Ultra Librarian 3499 CAD Model

Description

The 906632-3499 is a surface mount digital quadrature encoder from Pololu Corporation.

  • Type: Digital Quadrature Encoder
  • Mounting: Surface Mount
  • Manufacturer: Pololu Corporation
  • Encoder Type: Magnetic
  • Actuator Type: External Magnet (not included)
  • Resolution: 20 Pulses per Revolution
  • Detent: No Detent
  • Voltage Supply Range: 2.7V to 18V
  • Mounting Type: Servo Mount
  • Built-in Switch: No
  • Programmable: No
  • Orientation: Vertical
  • Termination Style: Surface Mount
  • Category: Sensor and Transducer
  • Product Status: Active
