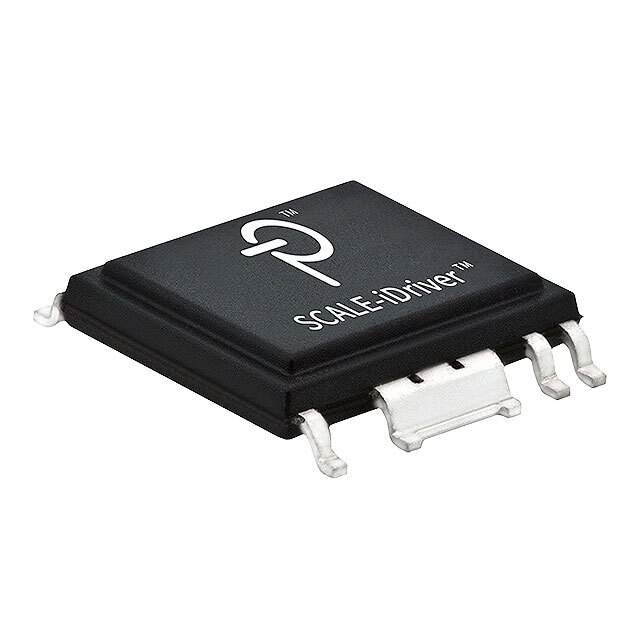

SID1152K-TL Real Image
Same model may have multiple batches, images only for reference.

SID1152K-TL

Part No SID1152K-TL
Manufacturer Power Integrations
Catalog Isolators - Gate Drivers
Description DGTL ISO 5KV GATE DRVR ESOP-R16B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Estimated Pruduction Lead Time 15 Weeks
Features 5A Gate Driver Magnetic Coupling 5000Vrms 1 Channel eSOP-R16B
Manufacturer Power Integrations
Series SCALE-iDriver™
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Case / Package eSOP-R16B
Family Name SID1152
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 1810-1073-6, 1810-1073-1, 1810-1073-2
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 894959-SID1152K-TL
Ultra Librarian 3D Model Ultra Librarian SID1152K-TL CAD Model

Description

The SCALE-iDriver™ series isolator from Power Integrations is a 5A gate driver magnetic coupling 5000Vrms 1 channel eSOP-R16B with a surface mount mounting.

  • Packaging: reel-TR
  • Package: 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
  • Quantity per package: 1000
  • Estimated Production Lead Time: 15 weeks
