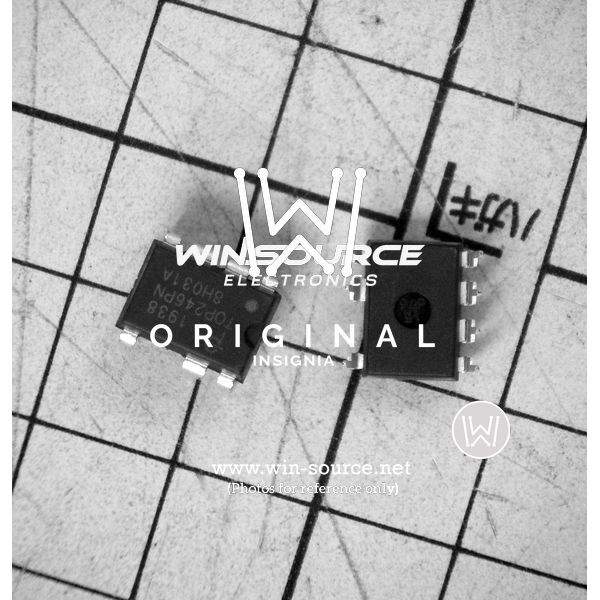

TOP246PN Real Image TOP246PN real image7771
Same model may have multiple batches, images only for reference.
TOP246PN Real Image TOP246PN real image7771
TOP246PN Real Image TOP246PN real image7771
Same model may have multiple batches, images only for reference.

TOP246PN

Part No TOP246PN
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description Integrated Off-Line Switcher / IC OFFLINE SWIT OVP UVLO HV 8DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 66.5%
Frequency - Switching 66kHz to 132kHz
Power (Watts) 34W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package DIP-8B
Mounting Through Hole
Win Source Part Number 033376-TOP246PN
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TOP246
ECCN EAR99
Country of Origin China
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian TOP246PN CAD Model

Description

The TOP246PN Flyback Power Integrations IC is a commonly used component in electronic circuits that require isolated power supplies.

  • Power: 34W
  • Output Isolation: Yes
  • Features: Internal switch(s) and frequency control
  • Fault Protection: Current limiting, over-temperature, and over-voltage protection
  • Voltage Breakdown: 700V
  • Duty Cycle: 66.5%
  • Frequency: 66kHz to 132kHz
  • Temperature Range: -40°C to 150°C (TJ)
  • Package: DIP-8B
  • Manufactured in: China
