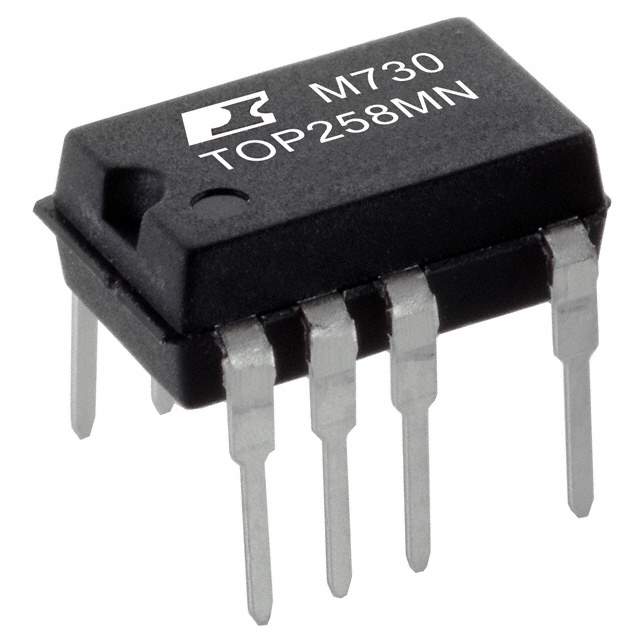

TOP258MN Real Image
Same model may have multiple batches, images only for reference.

TOP258MN

Part No TOP258MN
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description AC to DC Switching Converter Off-Line Switcher 9-Pin SDIP-C / IC OFFLINE SWIT PROG OVP 10CSDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz
Power (Watts) 48W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Operating Temperature -40°C to 150°C (TJ)
Case / Package SDIP-10C
Mounting Through Hole
Win Source Part Number 090864-TOP258MN
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TOP258
Introduction Date August 20, 2001
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian TOP258MN CAD Model

Description

The Power Integrations TOP258MN integrated circuit is an isolated flyback switcher that falls under the category of integrated circuits.

  • Packaging: tube/rail
  • Mounting: through hole
  • Power Rating: 48W
  • Voltage Breakdown: 700V
  • Frequency Switching: 66kHz
  • Duty Cycle: 78%
  • Status: active
  • EOL Date: 2022
