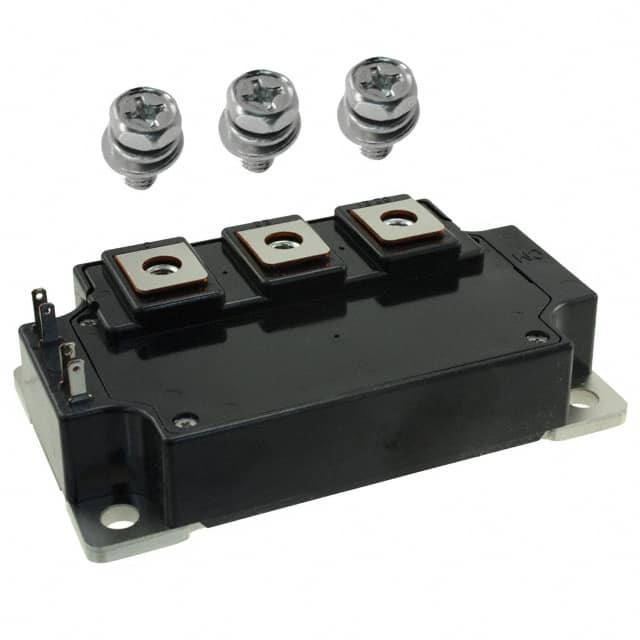

CM200DU-24F
Same model may have multiple batches, images only for reference.

CM200DU-24F

Part No CM200DU-24F
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD 1200V 200A 890W
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Powerex Inc.
Series IGBTMOD™
Package Bulk
Product Status Obsolete
IGBT Type Trench
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 200 A
Power - Max 890 W
Vce(on) (Max) @ Vge, Ic 2.4V @ 15V, 200A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 78 nF @ 10 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Standard Package 10 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 846764-CM200DU-24F
Ultra Librarian 3D Model Ultra Librarian CM200DU-24F CAD Model

Description

Looking for a reliable IGBT module for your half bridge configuration? The 846764-CM200DU-24F from Powerex Inc. is an excellent choice.

  • Series: IGBTMOD™
  • Maximum Power: 890 W
  • Configuration: Half Bridge
  • IGBT Type: Trench
  • Voltage Collector-Emitter Breakdown: 1200 V
  • Maximum Collector Current: 200 A
  • Vce(on): 2.4V @ 15V, 200A
  • Mounting Type: Chassis Mount
  • Package: Module
  • Operating Temperature: -40°C to 150°C (TJ)
  • Status: Obsolete
  • MSL: 1 (unlimited)
  • ECCN: EAR99
