Same model may have multiple batches, images only for reference.

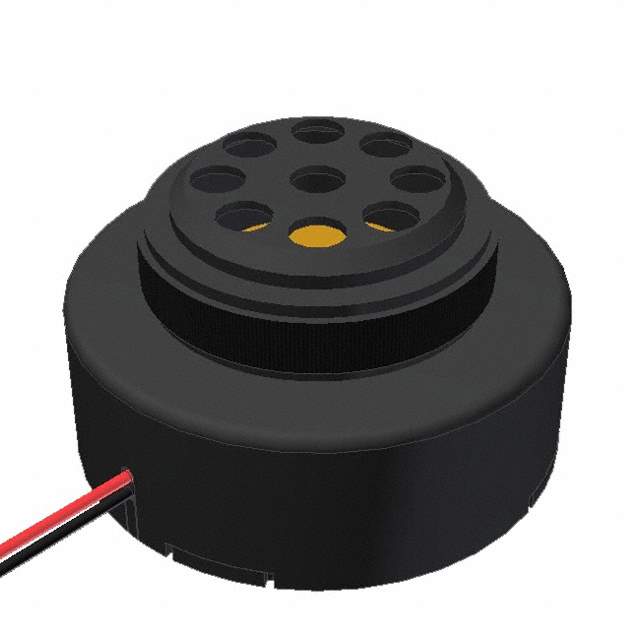

X-5328-P-C-LW165-R Real Image
Same model may have multiple batches, images only for reference.

X-5328-P-C-LW165-R

Part No X-5328-P-C-LW165-R
Manufacturer PUI Audio, Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO IND 3-12V PNL MNT / Audio Indicator Piezo 3VDC 12VDC 20mA 6VDC 103dBA 2300Hz to 3300Hz Panel Mount Wire Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer PUI Audio, Inc.
Series X
Packaging Tray
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage Rating DC 6V
Voltage Range 3 ~ 12V
Frequency 2.8kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 100dB @ 6V, 10cm
Operating Supply Current 20mA
Port Location Top
Operating Temperature Range -20°C ~ 60°C
Mounting Panel Mount
Termination Wire Leads
Dimension 2.087" Dia (53.00mm)
Height - Seated (Maximum) 1.240" (31.50mm)
Win Source Part Number 799260-X-5328-P-C-LW165-R
Popularity Medium
Supply and Demand Status Limited
Family Name X-5328-P-C-LW165-R
Introduction Date March 18, 2008
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian X-5328-P-C-LW165-R CAD Model

Description

The X series piezo technology audio product is a single tone indicator with an internally driven driver circuitry.

  • Packaging: Tray
  • Port Location: Top
  • Frequency: 2.8kHz
  • Sound Pressure Level (SPL): 100dB @ 6V, 10cm
  • Voltage Range: 3 ~ 12V
  • Operating Temperature Range: -20°C to 60°C
  • Height: 1.240" (31.50mm)
  • Dimension: 2.087" Dia (53.00mm)
  • ECCN: EAR99
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
