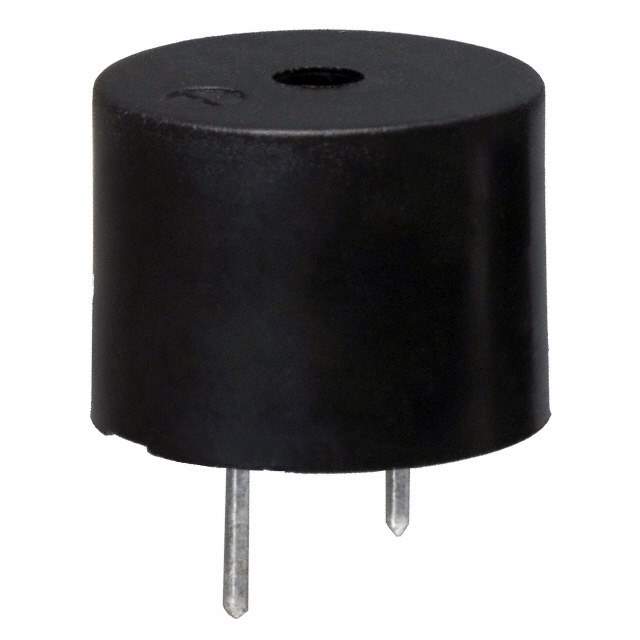

SD1209T3-A1 Real Image
Same model may have multiple batches, images only for reference.

SD1209T3-A1

Part No SD1209T3-A1
Manufacturer TDK Corporation
Catalog Alarms, Buzzers, and Sirens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr TDK Corporation
Series SD
Package Tray
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 3 V
Voltage Range 1 ~ 4V
Frequency 2.048kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 80dB @ 3V, 10cm
Current - Supply 100mA
Port Location Top
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Termination PC Pins
Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Other Names 445-2530-1,445-2530-3INACTIVE,445-2530-3,445-2530,SD1209T3A1,445-2530-3,445-2530-1
Standard Package 800
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1314323-SD1209T3-A1
Ultra Librarian 3D Model Ultra Librarian SD1209T3-A1 CAD Model

Description

The TDK Corporation SD1209T3-A1 is a magnetic technology buzzer used in alarms, buzzers, and sirens. TDK Corporation manufactures this.

  • Voltage Range: 1 ~ 4V
  • Frequency: 2.048kHz
  • Sound Pressure Level (SPL): 80dB @ 3V, 10cm
  • Mounting: Through a hole
  • Package: Tray-mounted
  • Termination: PC pins
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
