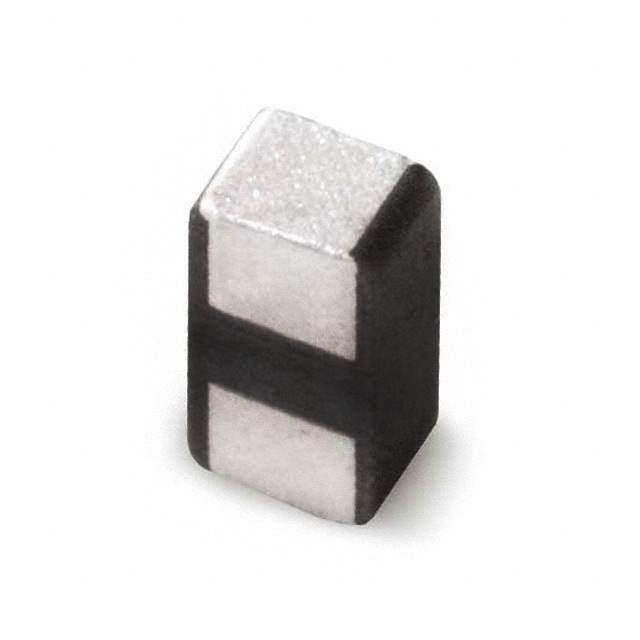

W3008C Real Image
Same model may have multiple batches, images only for reference.

W3008C

Part No W3008C
Manufacturer Pulse A Technitrol Company
Catalog RF Antennas
Description Solutions for Mobile Phone Antennas | RF ANT 2.4GHZ CHIP SOLDER SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer PulseLarsen Antennas
Packaging Reel
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.483GHz
Antenna Type Chip
Number of Bands 1
Return Loss -11dB
Gain 2.2dBi
Termination Solder
Mounting Style SMD
Height (Maximum) 0.043" (1.10mm)
Applications Bluetooth, WLAN, Zigbee
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1280103-W3008C
Manufacturer Homepage www.pulseeng.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian W3008C CAD Model

Description

The W3008C is a chip antenna manufactured by PulseLarsen Antennas. W3008C PulseLarsen Antennas.

  • Application: Bluetooth, WLAN, and Zigbee
  • Popularity: High
  • Frequency Range: 2.4GHz to 2.483GHz
  • Return Loss: -11dB
  • Frequency Group: UHF (2GHz to 3GHz)
  • Frequency Center/Band: 2.4GHz
  • Gain: 2.2dBi
  • RF Family/Standard: 802.15.4, Bluetooth, and WiFi
  • Mounting Technology: SMD
  • Packaging: Reel
  • Height: 0.043" (1.10mm)
  • VSWR: Not specified
