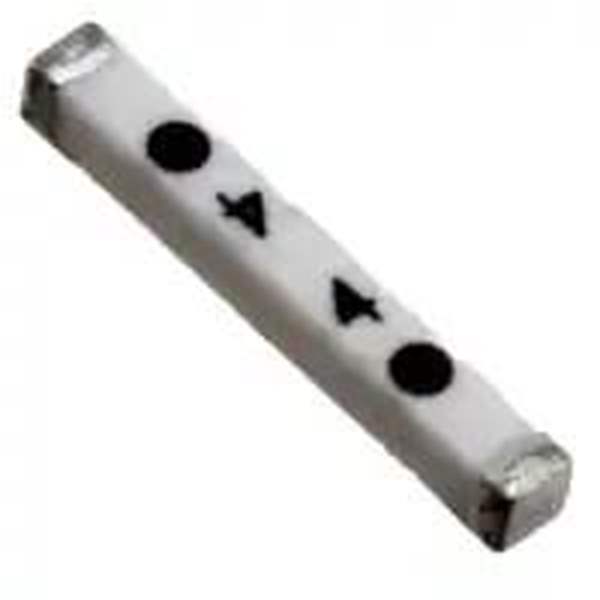

ANT8010LL04R2400A Real Image
Same model may have multiple batches, images only for reference.

ANT8010LL04R2400A

Part No ANT8010LL04R2400A
Manufacturer Pulse
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD
Datasheet
ANT8010LL04R2400A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Pulse
Series 8010
Package Tape & Reel
Product Status Active
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
Return Loss -24.9dB
Gain 5.46dBi
Power - Max 1 W
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.039" (1.00mm)
Applications Bluetooth, Wi-Fi, Zigbee™
Base Product Number ANT8010
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 846778-ANT8010LL04R2400A
Ultra Librarian 3D Model Ultra Librarian ANT8010LL04R2400A CAD Model

Description

The 846778-ANT8010LL04R2400A is an RF antenna designed for use in RF and wireless applications.

  • Applications: Bluetooth, Wi-Fi, and Zigbee™
  • Frequency Range: 2.4GHz to 2.5GHz
  • Return Loss: -24.9dB
  • Gain: 5.46dBi
  • Type: Chip Antenna
  • Mounting: Surface Mountable
  • Package: Tape & Reel
  • Standard Package: 3,000 pieces
  • Status: Active
  • Manufacturer: Pulse
