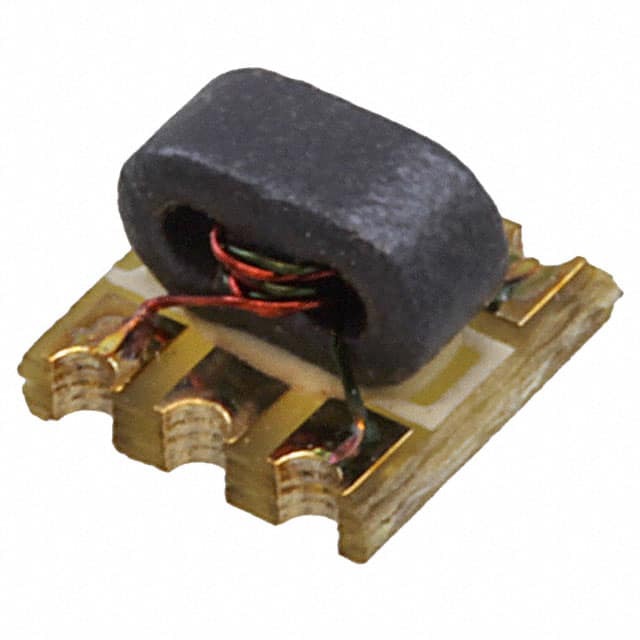

CX2039LNL
Same model may have multiple batches, images only for reference.

CX2039LNL

Part No CX2039LNL
Manufacturer Pulse
Catalog Balun
Description BALUN 4.5MHZ-1.5GHZ 50/50 5SMD
Datasheet
CX2039LNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Pulse
Package Tray
Product Status Active
Frequency Range 4.5MHz ~ 1.5GHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Return Loss (Min) -30dB
Package / Case 5-SMD Module
Mounting Type Surface Mount
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 916196-CX2039LNL
Ultra Librarian 3D Model Ultra Librarian CX2039LNL CAD Model

Description

The 916196-CX2039LNL is a surface mount RF and wireless balun module.

  • Frequency Range: 4.5MHz to 1.5GHz
  • Impedance (Balanced/Unbalanced): 50/50Ohm
  • Package: Tray
  • Standard Package Quantity: 100 pcs
  • Return Loss: -30dB
  • ECCN: EAR99
  • Manufacturer: Pulse
  • Status: Active
  • REACH: Unaffected
