Same model may have multiple batches, images only for reference.

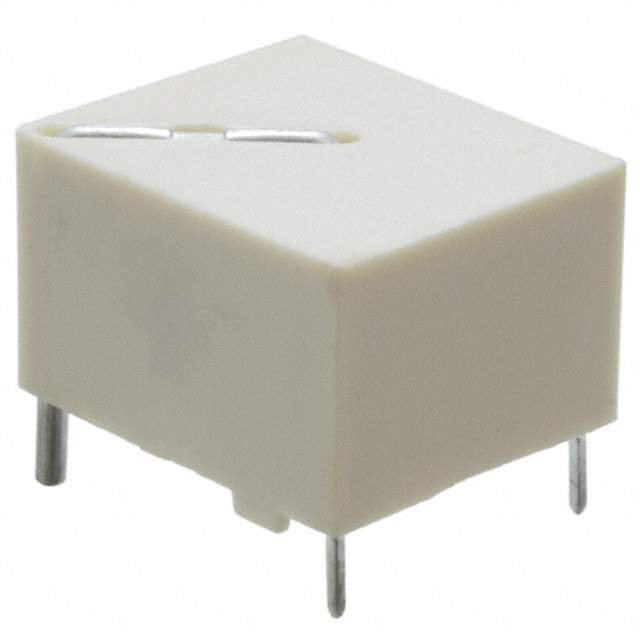

FIS125NL Real Image
Same model may have multiple batches, images only for reference.

FIS125NL

Part No FIS125NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:200 25A T/H / 1:200 Current Sense Transformer 500kHz Max 4.5Ohm Max 76 mH Through Hole
Datasheet
FIS125NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr Pulse Electronics Power
Series FIS 1X5
Package Tube
Frequency Range 500kHz Max
Type Invasive
Inductance 76 mH
ET (Volt-Time) 700VµS
DC Resistance (DCR) 4.5Ohm Max
Mounting Type Through Hole
Dimension 0.693" L x 0.591" W (17.60mm x 15.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination Style PC Pin
Weight 0.017 lb (7.71 g)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-1836-5,FIS125NL-ND
Standard Package 30
Win Source Part Number 988708-FIS125NL
Ultra Librarian 3D Model Ultra Librarian FIS125NL CAD Model

Description

The FIS125NL transformer from Pulse Electronics Power is a current sense transformer, with an invasive type and a PC Pin termination style.

  • Inductance: 76mH
  • Weight: 0.017lb (7.71g)
  • Package: Tube
  • Mounting: Through-hole
  • Temperature Range: -40°C to 130°C
  • Dimensions: 0.693" L x 0.591" W (17.60mm x 15.00mm)
  • Height: 0.492" (12.50mm)
  • ECCN: EAR99 compliant
  • Standard Package: 30
