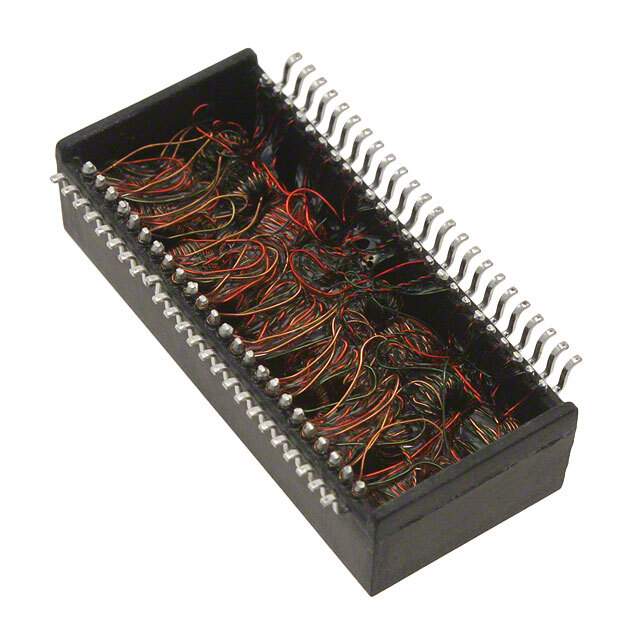

The H5014NL is a surface-mount Ethernet transformer module manufactured by Pulse Electronics. It's designed to provide electrical isolation and signal conditioning for Ethernet communication interfaces. These modules are crucial for ensuring proper signal integrity and preventing damage from voltage surges or ground loops.

Applications:

• Ethernet interfaces in networking devices
• LAN cards
• Routers and switches
• Embedded Ethernet controllers
• Network interface cards (NICs)

Features:

• Isolation voltage
• Common mode choke for noise reduction
• Surface mount package
• Compliant with IEEE 802.3 standards
• Low insertion loss

Benefits:

• Protection from voltage transients and ground loops, ensuring reliable operation of Ethernet devices.
• Improved signal integrity by reducing noise and interference.
• Easy integration into PCB designs with surface mount package.
• Compliance with industry standards ensures compatibility.
• Enhanced network performance.

Additional Details:

The H5014NL typically features an isolation voltage of 1500Vrms or higher. It includes a common-mode choke to suppress common-mode noise. The package is a standard surface-mount package for automated assembly. It's designed to meet IEEE 802.3 specifications for Ethernet communication. Always refer to the manufacturer's datasheet for precise electrical characteristics, impedance matching requirements, and soldering guidelines to ensure optimal performance and long-term reliability. The transformer is designed to meet RoHS compliance standards.
