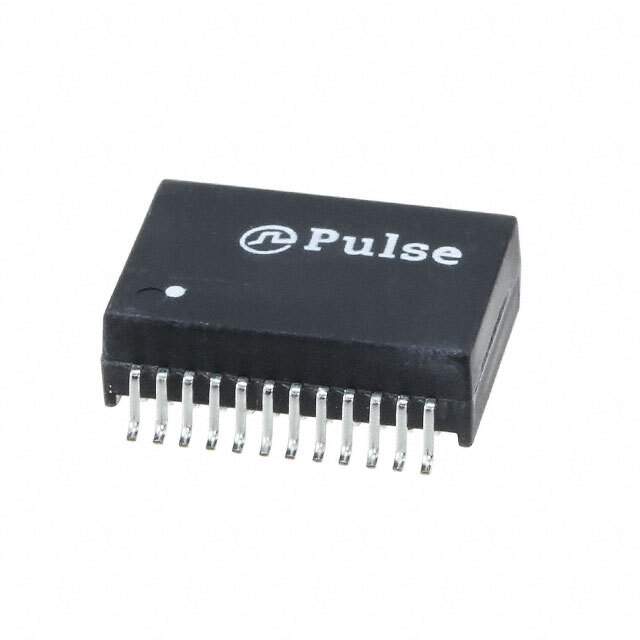

HX6096NLS Real Image1 HX6096NLS Real Image2
Same model may have multiple batches, images only for reference.
HX6096NLS Real Image1 HX6096NLS Real Image2
HX6096NLS Real Image1 HX6096NLS Real Image2
Same model may have multiple batches, images only for reference.

HX6096NLS

Part No HX6096NLS
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER / 250µH LAN 10/100/1000 Base-T Pulse Transformer 1:1 Surface Mount
Datasheet
HX6096NLS Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse
Series -
Package Bulk
Product Status Obsolete
Transformer Type LAN 10/100/1000 Base-T
Inductance 250µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.715" L x 0.480" W (18.16mm x 12.20mm)
Height - Seated (Max) 0.270" (6.85mm)
Temperature Range - Operating -40°C ~ 85°C
Weight -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN OBSOLETE
HTSUS 0000.00.0000
Standard Package 25 pcs
Win Source Part Number 1382285-HX6096NLS
Ultra Librarian 3D Model Ultra Librarian HX6096NLS CAD Model

Description

The HX6096NLS Pulse Transformer is a high-quality transformer designed for LAN 10/100/1000 Base-T applications. Bold the product name (e.g., BAV99S,135 → HX6096NLS) and manufacturer (e.g., Nexperia USA Inc. → Pulse).

  • Size: 0.715" L x 0.480" W (18.16mm x 12.20mm)
  • Inductance: 250µH
  • Maximum Seated Height: 0.270" (6.85mm)
  • Mounting Type: surface mountable
  • Temperature Range: -40°C to 85°C
