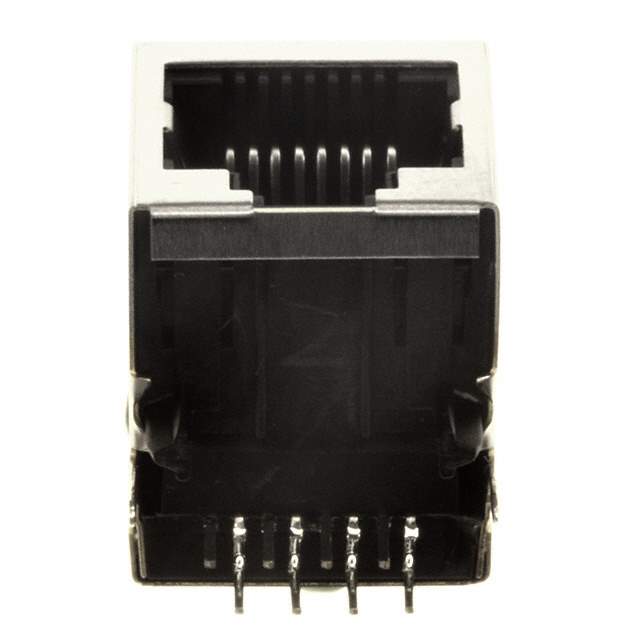

J0011D01NL

Name: J0011D01NL
Brand: Pulse
SKU: 608624
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	J0011D01NL
Manufacturer	Pulse
Catalog	Modular Connectors
Description	10/100 Base-TX RJ45 1x1 Tab-DOWN with LEDs 8-pin (J0 series) integrated magnetics connector (ICM), designed to \| CONN MAGJACK 1PORT 100 BASE-TX
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Pulse Electronics Network
Packaging	Tray
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100 Base-TX, AutoMDIX
Mounting Style	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.545" (13.84mm)
LED Color	Does Not Contain LED
Number of Cores per Jack	4
Shielding	Shielded
Features	Board Guide
Tab Direction	Down
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	15.0μin (0.38μm)
Shield Material	Brass
Dielectric Material	Thermoplastic
Manufacturer Pack Quantity	30
MSL Level	1 (Unlimited)
Win Source Part Number	1191312-J0011D01NL
Manufacturer Homepage	www.pulseeng.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian J0011D01NL CAD Model

Alternative Products

Description

The Pulse Electronics Network J0011D01NL is an RJ45 connector that has a 90° angle (right) orientation from Pulse Electronics Network.

Shielded: Yes
Applications: 10/100 Base-TX and AutoMDIX
Contact Material: Phosphor Bronze
Contact Finish: Gold
Height Above Board: 0.545" (13.84mm)
Mounting Type: Through Hole
Temperature Range: 0°C to 70°C
Packaging: Tray
Pack Quantity: 30
Popularity: Medium
Supply and Demand Status: Limited
