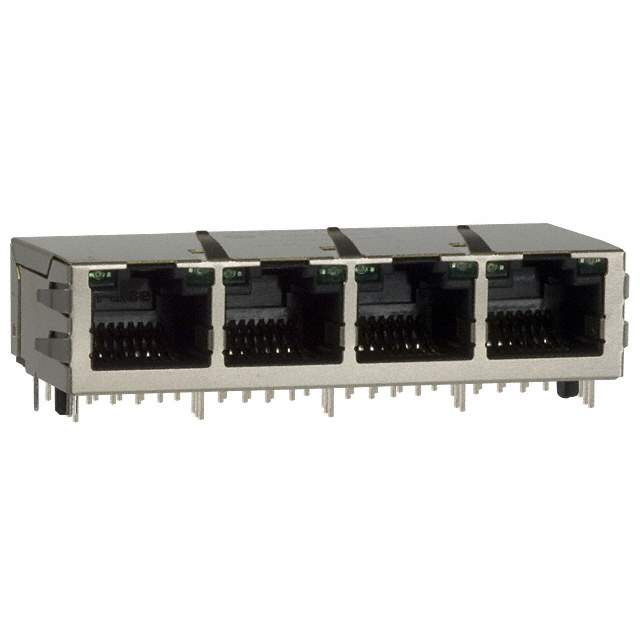

Same model may have multiple batches, images only for reference.

JG0-0025NL

Name: JG0-0025NL
Brand: Pulse
SKU: 1333960
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	JG0-0025NL
Manufacturer	Pulse
Catalog	Modular Connectors
Description	CONN JACK 4PORT 1000 BASE-T PCB / 4 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet	JG0-0025NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer	Pulse Electronics
Packaging	Tray
Connector Type	RJ45
Number of Ports	4
Number of Rows	1
Applications	10/100/1000 Base-T, AutoMDIX
Mounting	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.545" (13.84mm)
LED Color	Green - Green
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	Up
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	30.0µin (0.76µm)
Shield Material	Brass
Housing Material	Thermoplastic
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	553-1358,JG00025NL
Standard Package	15
Win Source Part Number	1333960-JG0-0025NL
Ultra Librarian 3D Model	Ultra Librarian JG0-0025NL CAD Model

Alternative Products

Description

The Pulse Electronics 1333960-JG0-0025NL is a modular connector jack with magnetics.

Packaging: Tray
Feature: Board Guide
Connector Type: RJ45
Row: One
Termination: Solder
Contact Finish: Gold with a thickness of 30.0μin (0.76μm)
Contact Material: Phosphor Bronze
Height Above Board: 0.545" (13.84mm)
Shielding: EMI Finger
Material: Thermoplastic
Applications: 10/100/1000 Base-T, AutoMDIX
Orientation: 90° angle (right)
Ports: Four
Package: 15 connectors
Mounting: Through-hole
LED Color: Green-green
Cores per Jack: 8
Tab Direction: Up
Shield Material: Brass
Temperature Range: 0°C ~ 70°C
RoHS Compliant: Yes
