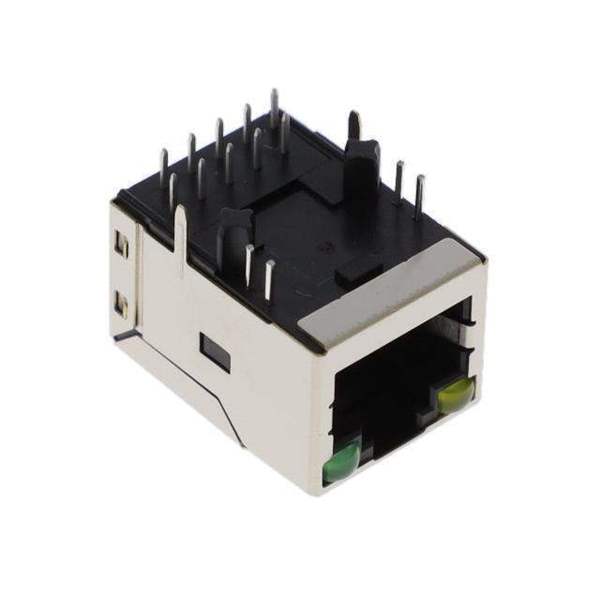

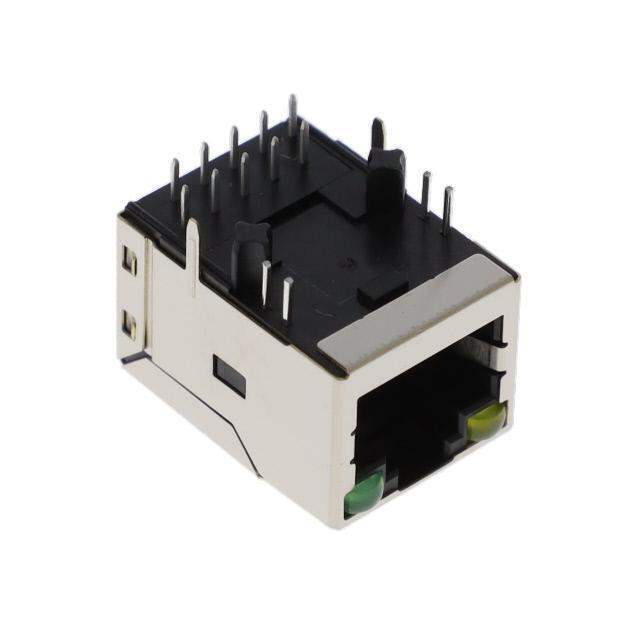

JXD1-0019NL Pulse Electronics
Same model may have multiple batches, images only for reference.

JXD1-0019NL

Part No JXD1-0019NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB
Datasheet
JXD1-0019NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201253-JXD1-0019NL
Manufacturer Pulse Electronics
Category Connectors, Interconnects -Modular Connectors- Modular Connector Jacks With Magnetics
Series PULSEJACK™ JXD0
Package Tray
Product Status Active
Connector Type RJ45
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Ultra Librarian 3D Model Ultra Librarian JXD1-0019NL CAD Model

Description

The Pulse Electronics Modular Connector Jack with Magnetics is a versatile and reliable connector for various applications.

  • Manufacturer: Pulse Electronics
  • For Use With: 10/100/1000 Base-T
  • Features: AutoMDIX
  • Interface: RJ45
  • Termination Style: Solder
  • Mounting Type: Through Hole
  • Orientation: 90° Angle (Right)
  • Packaging: Tray
  • Product Status: Active
