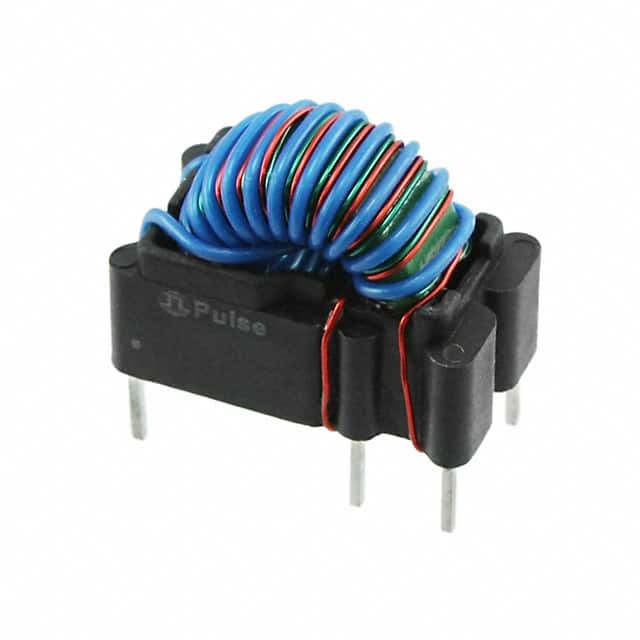

P0584NL
Same model may have multiple batches, images only for reference.

P0584NL

Part No P0584NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1:1 450UH
Datasheet
P0584NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tray
Product Status Active
Inductance 450µH
ET (Volt-Time) 95VµS
Mounting Type Through Hole
Size / Dimension 0.810" L x 0.480" W (20.57mm x 12.19mm)
Height - Seated (Max) 0.750" (19.05mm)
Temperature Range - Operating -40°C ~ 125°C
Standard Package 80 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 851678-P0584NL
Ultra Librarian 3D Model Ultra Librarian P0584NL CAD Model

Description

The 851678-P0584NL is a pulse transformer manufactured by Pulse.

  • Product Name: 851678-P0584NL
  • Category: Transformers - Pulse Transformers
  • Packaging: Tray
  • Size/Dimension: 0.810" L x 0.480" W (20.57mm x 12.19mm)
  • Transformer Type: Unspecified
  • Inductance: 450µH
  • Height Seated: 0.750" (19.05mm) Max
  • Standard Package: 80 pieces
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL: 1 (Unlimited)
  • ET (Volt-Time): 95VµS
  • HTSUS Code: 8504.31.2000
  • Manufacturer: Pulse
